ENGINE COMPARTMENT FUSE BOX

Service repair no - 86.70.01

Remove

  1. Disconnect both battery leads, earth lead first.

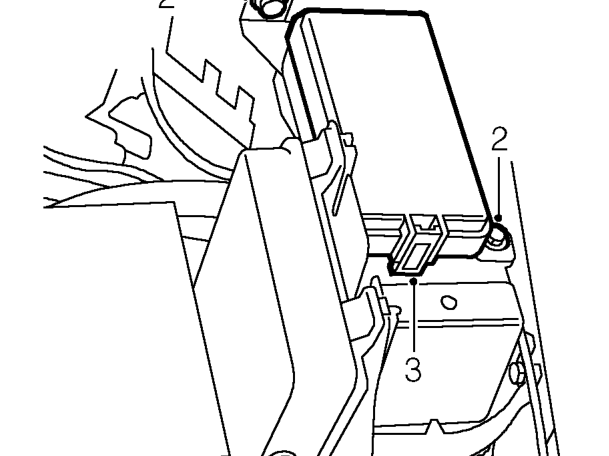

Engine compartment fuse box – Disconnect both battery leads, earth lead first.
  1. Remove 2 bolts securing fuse box to body.
  2. Release clip and remove fuse box cover.

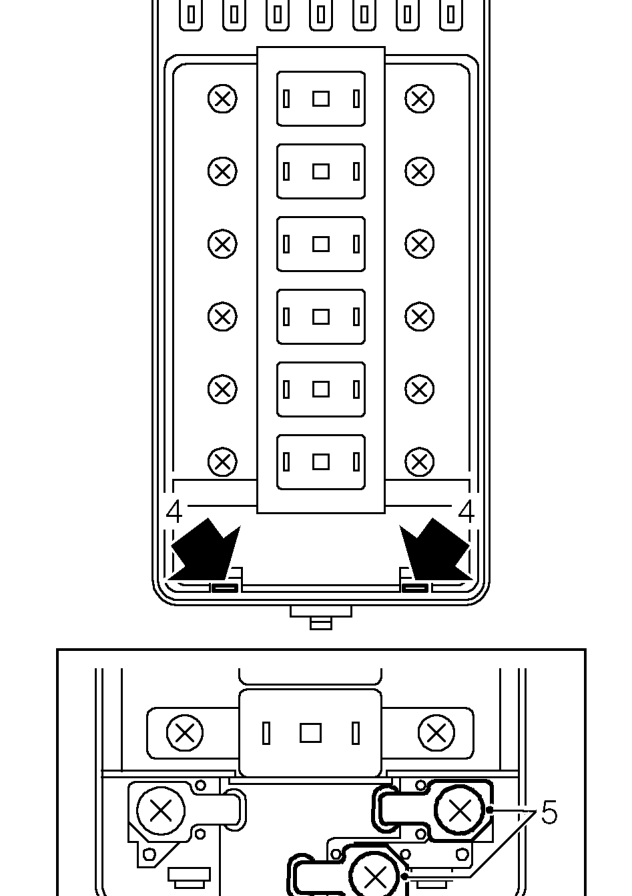

Engine compartment fuse box – Release clip and remove fuse box cover.
  1. Release 2 clips and remove fuse box inner cover.
  2. Remove 2 screws securing positive leads to fuse box.
