ElectricalPassenger compartment fuse box

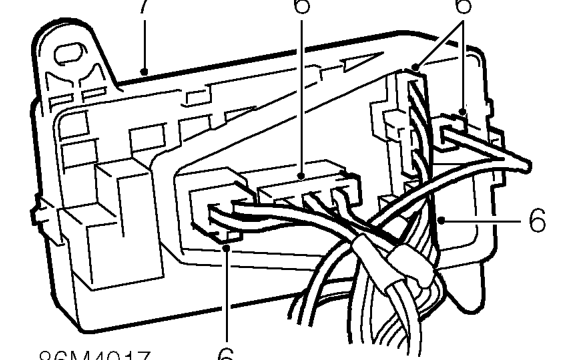

Diagram
  1. Disconnect 5 multiplugs from fuse box.
  2. Remove fuse box.

Refit

  1. Position fuse box and connect multiplugs.
  2. Fit positive leads to fuse box and secure with screws.
  3. Fit fuse box inner cover.
  4. Fit fuse box cover.
  5. Position fuse box to body, fit bolts and tighten to 10 Nm.
  6. Connect both battery leads, earth lead last.

PASSENGER COMPARTMENT FUSE BOX

Service repair no - 86.70.04

Remove

  1. Disconnect battery earth lead.

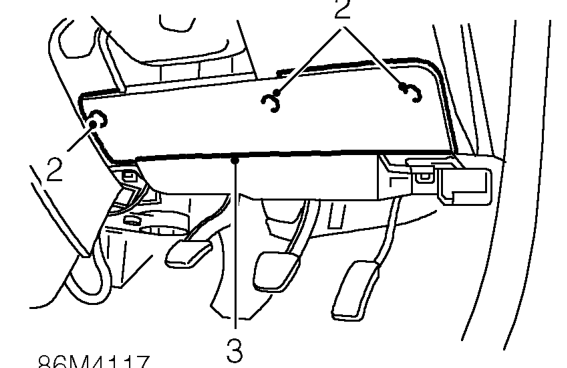

Passenger compartment fuse box – Disconnect battery earth lead.
  1. Release 3 turnbuckles securing fuse box cover to fascia.
  2. Remove fuse box cover.

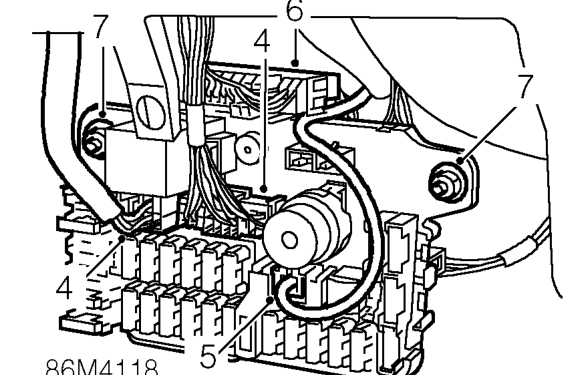

Passenger compartment fuse box – Remove fuse box cover.
  1. Disconnect 2 starter switch multiplugs from fuse box.
  2. Disconnect SRS multiplug from fuse box.
  3. Release multiplug secured to top edge of fuse box.
  4. Remove 2 nuts securing fuse box to mounting bracket.
