Front fog light switch

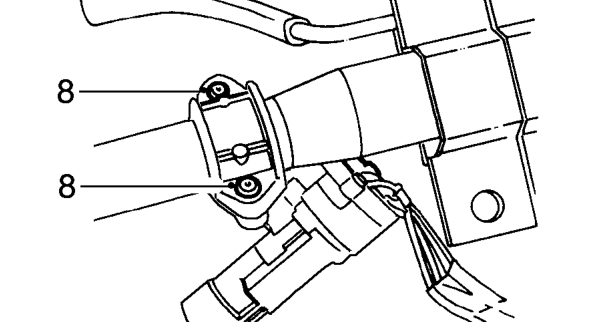

8. Centre punch and drill out 2 shear bolts using a 5 mm drill.

CAUTION: Take care not to damage switch body if switch is to be refitted.

9. Remove starter switch and bracket.

Refit

1. Position starter switch to column and fit shear bolts loosely.
2. Insert starter key, check operation of steering lock and key turns freely.
3. Tighten shear bolts until heads shear off.
4. Raise column and engage top bracket on studs and fit nuts, DO NOT tighten.
5. Fit lower clamp, tighten nut and bolt to 22 Nm.
6. Tighten top bracket nuts and bolts to 16 Nm.
7. Connect ignition switch multiplugs to fuse box and harness.
8. Connect multiplugs to column switches and rotary coupler.
9. Fit steering column nacelle. See STEERING, Repairs.

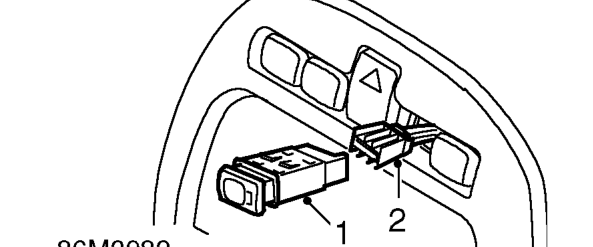

FRONT FOG LIGHT SWITCH

Service repair no - 86.65.19

1. Release front fog light switch from centre console.
2. Disconnect multiplug from rear of switch.
3. Remove switch.

Remove

1. Position switch to centre console and connect multiplug.
2. Fit switch to centre console.
