ANTI-THEFT ALARM LED

Service repair no - 86.55.97

Remove

  1. Remove instrument pack. See INSTRUMENTS, Repairs.

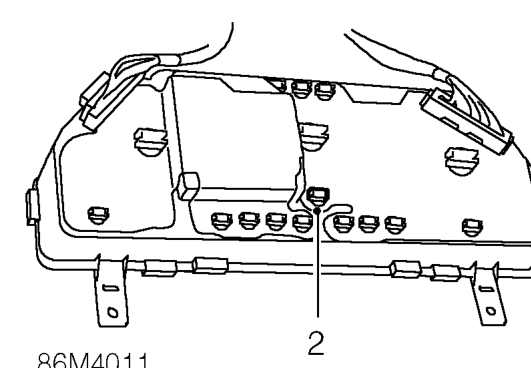

Anti-theft alarm led – Remove instrument pack. See INSTRUMENTS, Repairs.
  1. Remove anti-theft alarm LED from rear of instrument pack.

Refit

  1. Fit LED to rear of instrument pack.
  2. Fit instrument pack. See INSTRUMENTS, Repairs.

STARTER MOTOR - ’K16’

Service repair no - 86.60.01

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

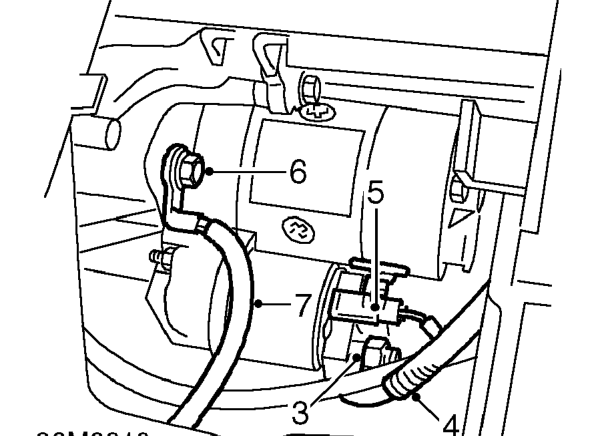

Starter motor - ’k16’ – Raise front of vehicle.
  1. Remove nut securing battery lead to starter solenoid.
  2. Disconnect battery lead from starter solenoid.
  3. Disconnect Lucar from starter solenoid.
  4. Remove upper bolt securing starter motor to engine.
  5. Disconnect battery earth lead from bolt.
