Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement24 · Electrical
24 · Electrical

Automatic gear selector bulb

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Automatic gear selector bulb
ElectricalAutomatic gear selector bulb

AUTOMATIC GEAR SELECTOR BULB

Service repair no - 86.45.40

Remove

  1. Remove front console. See BODY, Interior trim components.

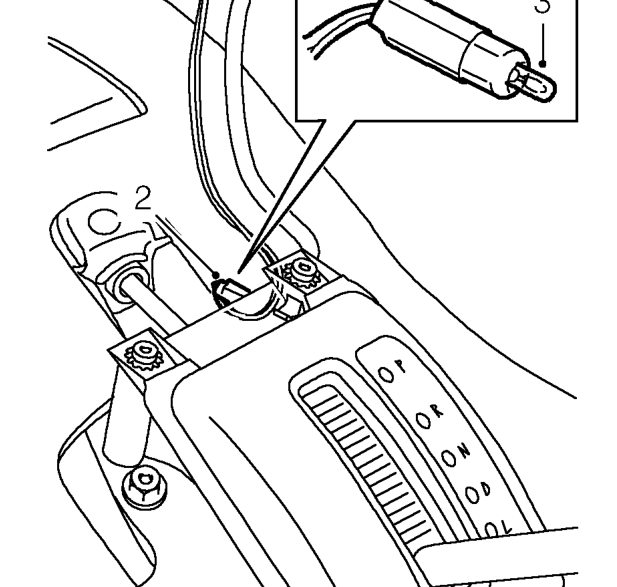

Automatic gear selector bulb – Remove front console. See BODY, Interior trim components.
  1. Release bulb holder from selector nacelle.
  2. Remove bulb from holder.

Refit

  1. Fit new bulb to holder and secure to selector nacelle.
  2. Fit front console. See BODY, Interior trim components.

HEATER CONTROL ILLUMINATION BULB

Service repair no - 86.45.41

Remove

  1. Remove front console. See BODY, Interior trim components.

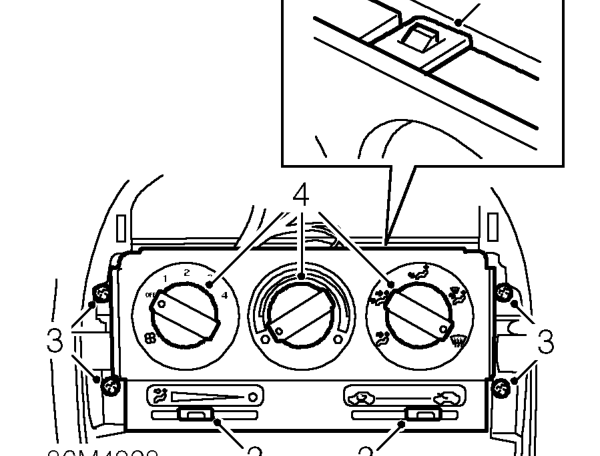

Heater control illumination bulb – Remove front console. See BODY, Interior trim components.
  1. Remove knobs from fresh air and air recirculation controls.
  2. Remove 4 screws securing heater control panel to fascia and lower control panel.
  3. Remove knobs from heater controls.

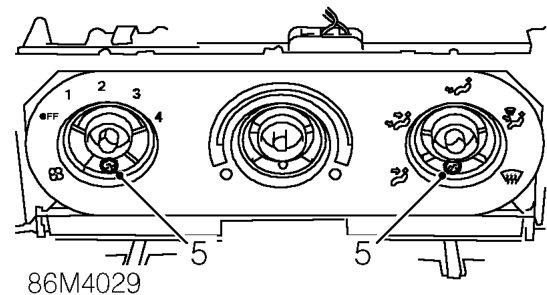

Heater control illumination bulb – Remove knobs from heater controls.
  1. Remove 2 screws securing faceplate to heater controls.
  2. Release 6 clips securing faceplate to heater controls and release faceplate.
