Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement19 · Restraint systems
19 · Body & interior

Seat belt pre-tensioner (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Restraint systemsSeat belt pre-tensioner · page 2 of 2

Remove

  1. Remove front seat. See BODY, Seats and seat belts.
  2. Turn seat upside down and stand on level surface.

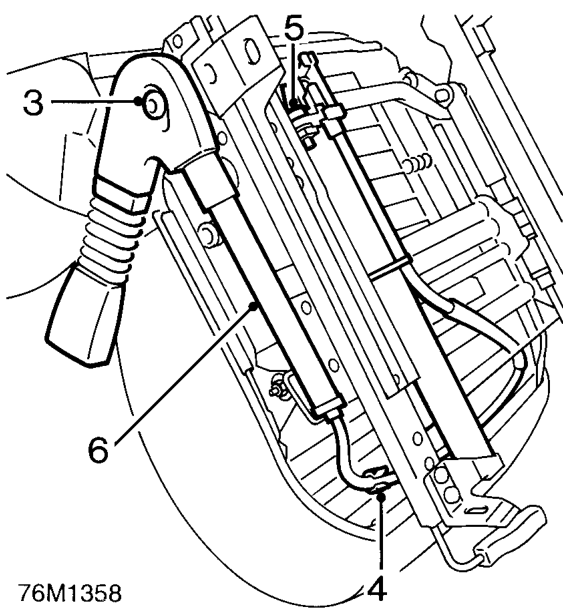

Turn seat upside down and stand on level surface.
  1. Remove Torx screw securing seat belt buckle to seat frame.
  2. Release pre-tensioner cable from clip and seat frame.
  3. Remove Torx screw securing pre-tensioner unit to seat frame.
  4. Release pre-tensioner from seat frame and remove.

Refit

  1. Align pre-tensioner unit to seat frame, fit Torx screw and tighten to 20 Nm.
  2. Route pre-tensioner cable on seat frame and secure to clip.
  3. Position seat belt buckle to seat frame, fit Torx screw and tighten to 30 Nm.
  4. Fit front seat. See BODY, Seats and seat belts.
