Driver airbag

DRIVER AIRBAG

Service repair no - 76.73.71

CAUTION: • Replace the airbag every 10 years. • Do not install used SRS parts from another car. When repairing an SRS system, always use genuine new Rover parts. • Carefully inspect the airbag assembly before installing it. Do not install an airbag assembly that shows signs of being dropped or improperly handled, such as dents, cracks, or deformation. • Do not try to disassemble, or tamper with the airbag assembly. • Special bolts are necessary for installing the airbag assembly. Do not use other bolts.

Remove

1. Remove key from starter switch and wait 10 minutes to allow SRS back-up power circuit to discharge before commencing work.
2. Disconnect both battery leads, earth lead first.

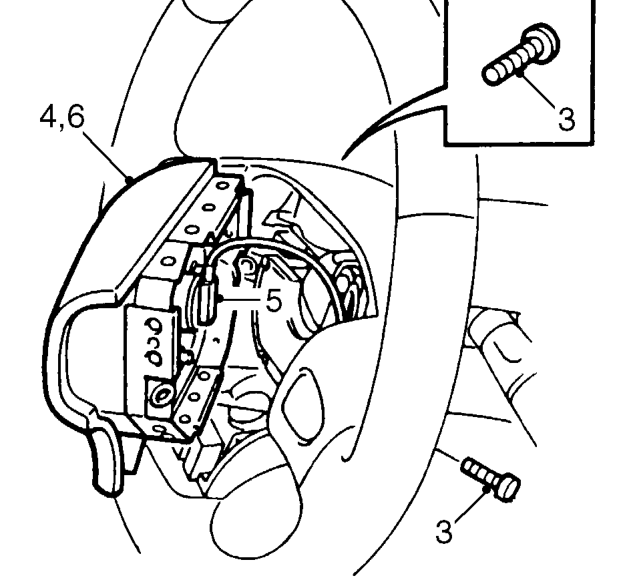

3. Remove 2 Torx bolts securing the airbag module to steering wheel.
4. Release airbag module from steering wheel.

CAUTION: Do not allow the airbag module to hang by the airbag harness.

5. Disconnect harness connector from airbag module.
6. Remove airbag module.

CAUTION: Store the airbag module in accordance with the storage procedures outlined in the precautions part of this section.

NOTE: If the airbag module is to be replaced, bar code of new airbag must be recorded.

Refit

1. Position airbag module and make connection with harness upwards as shown in illustration.
2. Fit airbag to steering wheel and hand start the 2 Torx screws. Tighten screws to 9 Nm.
3. Connect battery leads, earth lead last.
4. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.
