Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement19 · Restraint systems
19 · Body & interior

Deployment of passenger airbag module (page 3 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Precautions
Restraint systemsDeployment of passenger airbag module · page 3 of 3
Diagram

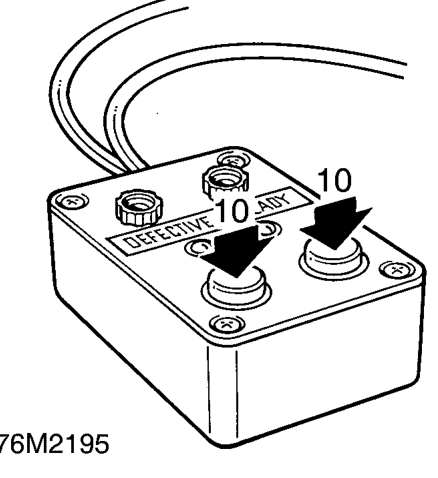

  1. Press both operating buttons to deploy airbag igniter unit.
  2. DO NOT return to airbag module for 30 minutes.
  3. Repeat steps 7 to 11 for second airbag igniter unit.
Repeat steps 7 to 11 for second airbag igniter unit.

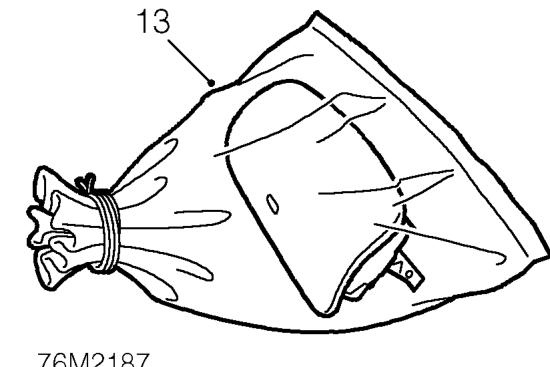

  1. Using gloves and face mask, remove airbag module from tool, place airbag module in plastic bag and seal bag.
  2. Wipe down tool with damp cloth.
  3. Transport deployed airbag module to designated area for incineration.

NOTE: DO NOT transport airbag module in the vehicle passenger compartment.

  1. Scrap all remaining parts of airbag system. DO NOT re-use or salvage any parts of the airbag system.
