Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement19 · Restraint systems
19 · Body & interior

Deployment of passenger airbag module (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Precautions
Restraint systemsDeployment of passenger airbag module · page 2 of 3
Diagram

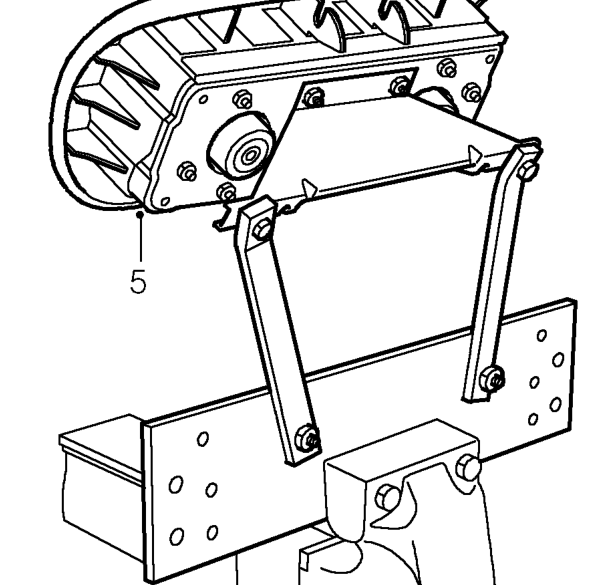

  1. Position airbag module to tool SMD 4082/6. Ensure module is correctly secured using all fixings.
  2. Ensure airbag module mounting brackets are secure.

WARNING: Ensure tool SMD 4082/1 is not connected to battery.

Ensure airbag module mounting brackets are secure.

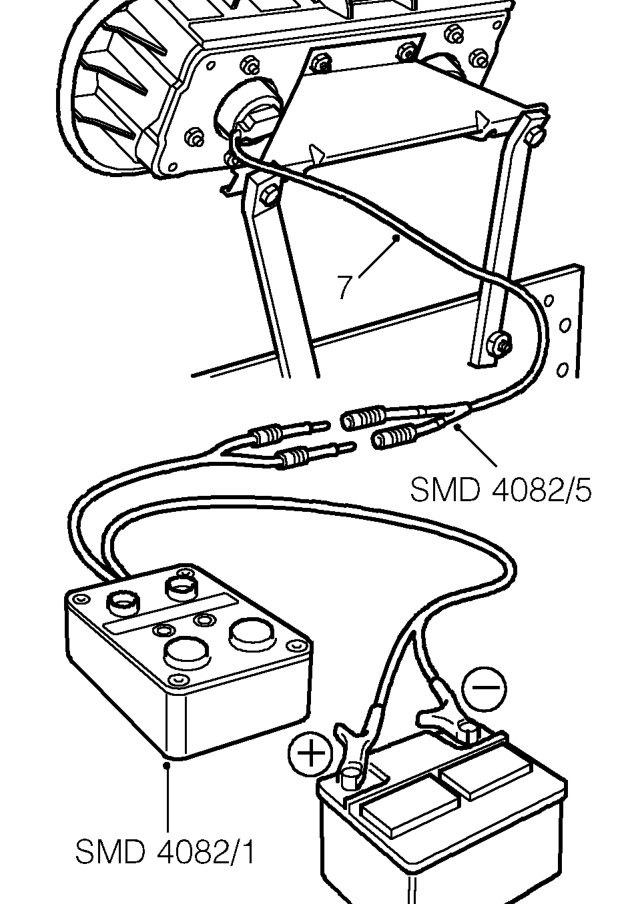

  1. Connect flylead SMD 4082/5 to airbag module.
  2. Connect flylead SMD 4082/5 to tool SMD 4082/1.

WARNING: Do not lean over airbag module whilst connecting.

  1. Connect tool SMD 4082/1 to battery.

WARNING: Ensure all personnel are standing at least 15 metres away from module.
