Airbag harness

Refit

CAUTION: Ensure unit and bracket faces are clean and free from burrs. An incorrectly mounted unit could cause the system to malfunction.

1. Position unit, fit NEW Torx screws and tighten to 9 Nm.
2. Connect multiplug and secure clip.
3. Position earth lead to body and secure with bolt.
4. Fit control unit cover and secure with scrivets.
5. Connect both battery leads, earth lead last.
6. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.

AIRBAG HARNESS

Service repair no - 76.73.73

Remove

CAUTION:

• Do not install used SRS parts from another car. When repairing an SRS, use only genuine new Rover parts.
• Never attempt to modify, splice, or repair SRS wiring.

NOTE: SRS wiring can be identified by yellow or black with yellow stripe outer protective covering.

1. Remove key from ignition switch and wait 10 minutes to allow SRS back-up power circuit to discharge before commencing work.
2. Disconnect both battery leads, earth lead first.
3. Remove front console. See BODY, Interior trim components.
4. Remove steering column nacelle. See STEERING, Repairs.

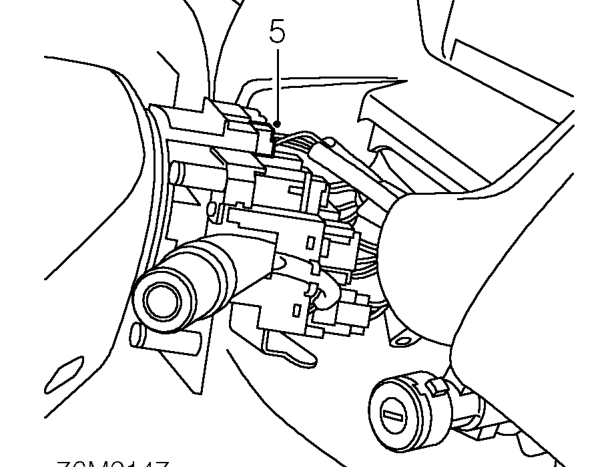

5. Disconnect airbag multiplug from rotary coupler.
