Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement19 · Restraint systems
19 · Body & interior

Airbag harness (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Restraint systemsAirbag harness · page 2 of 2
Diagram

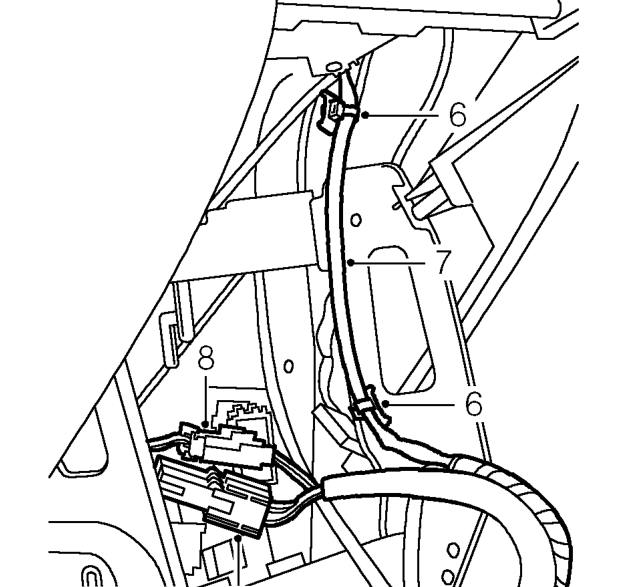

  1. Release 2 clips securing airbag harness to fascia support bracket.
  2. Release drivers airbag harness from fascia.
  3. Disconnect main harness to SRS harness multiplug.
  4. Disconnect 2 multiplugs, passenger airbag harness to driver airbag harness.

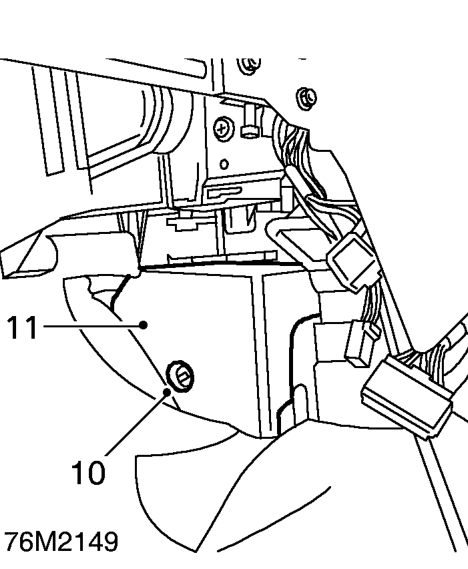

Disconnect 2 multiplugs, passenger airbag harness to driver airbag harness.
  1. Remove 2 scrivets securing control and diagnostic unit cover.
  2. Remove cover from control unit.

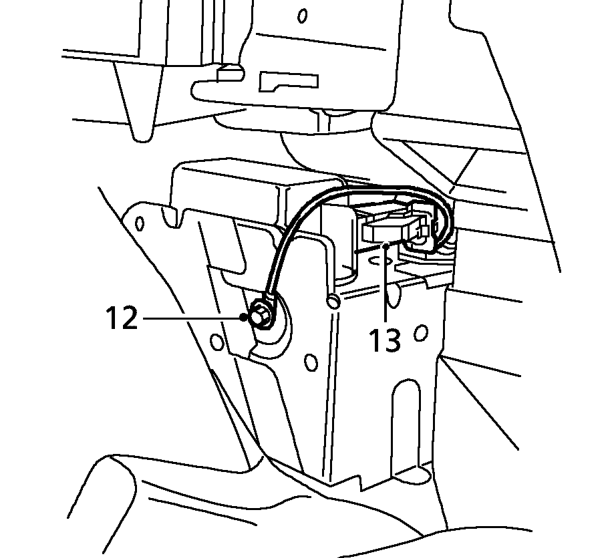

Remove cover from control unit.
  1. Remove bolt securing earth lead to body.
  2. Disconnect multiplug from SRS control unit.
  3. Release harness from fascia and remove airbag harness.
