AIRBAG CONTROL AND DIAGNOSTIC UNIT

Service repair no - 76.73.72

Remove

CAUTION: See safety precautions before commencement of repair.

  1. Remove key from starter switch and wait 10 minutes for SRS back-up power circuit to discharge before commencing work.
  2. Disconnect both battery leads, earth lead first.
Airbag control and diagnostic unit – Disconnect both battery leads, earth lead first.

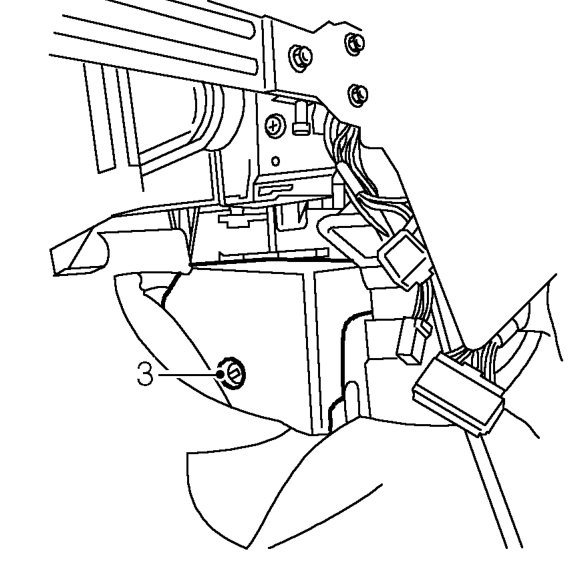

  1. Remove 2 scrivets securing control and diagnostic unit cover. Remove cover.
Airbag control and diagnostic unit – Remove 2 scrivets securing control and diagnostic unit cover. Remove cover.

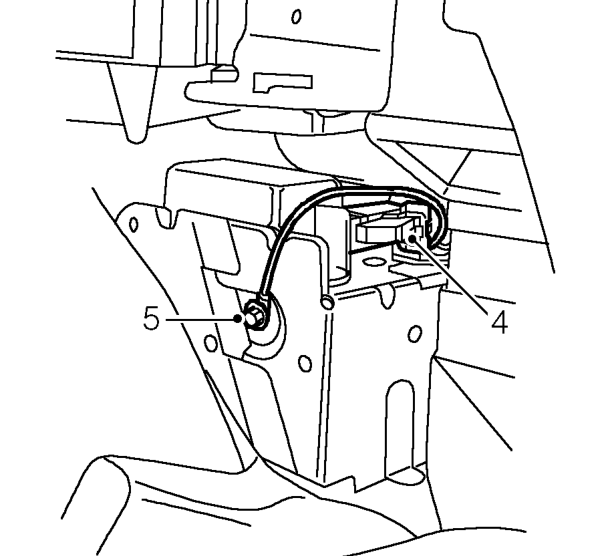

  1. Disconnect multiplug from unit.
  2. Remove bolt securing earth lead to body.
Airbag control and diagnostic unit – Remove bolt securing earth lead to body.

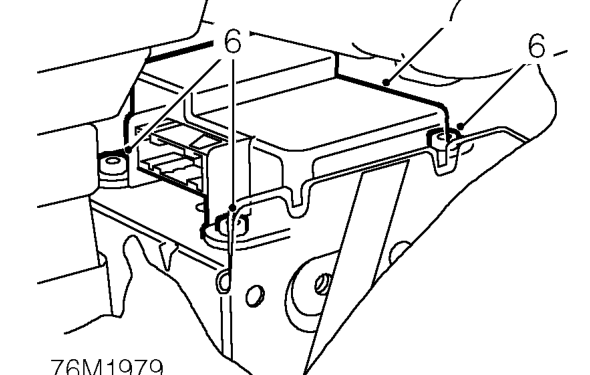

  1. Remove and discard 3 TX30 Torx screws securing control unit to body.
  2. Remove control and diagnostic unit.
