Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement20 · Body
20 · Body & interior

Front seat

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Seats and seat belts › Front seat
BodyFront seat · page 1 of 2

FRONT SEAT

Service repair no - 78.10.44.99

CAUTION: • ALWAYS ensure the red service key is inserted into the slot on pre-tensioner before removing the seat or pre-tensioner. • DO NOT slide the seat assembly along the floor or mishandle the seat with a pre-tensioner fitted. • ALWAYS remove the service key and fit cover before the vehicle leaves the workshop. Failure to do this will prevent the pre-tensioner from activating, reducing the efficiency of the car’s front restraint systems.

Remove

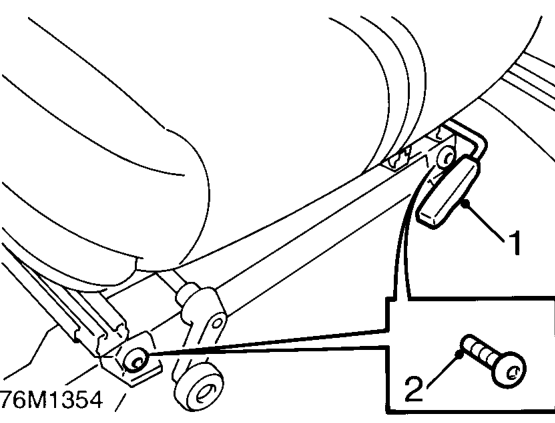

Front seat – Service repair no - 78.10.44.99
  1. Lift seat adjusting lever and slide seat backwards.
  2. Remove 2 Torx bolts securing seat slides to floor.
  3. Lift seat adjusting lever and slide seat forwards.

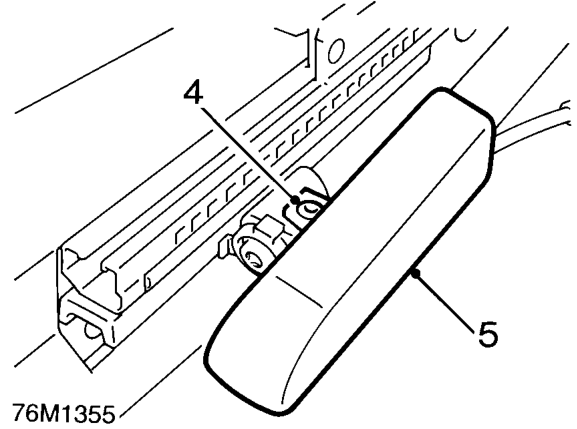

Front seat – Lift seat adjusting lever and slide seat forwards.
  1. Remove screw securing seat belt pre-tensioner cover to seat frame.
  2. Remove cover.

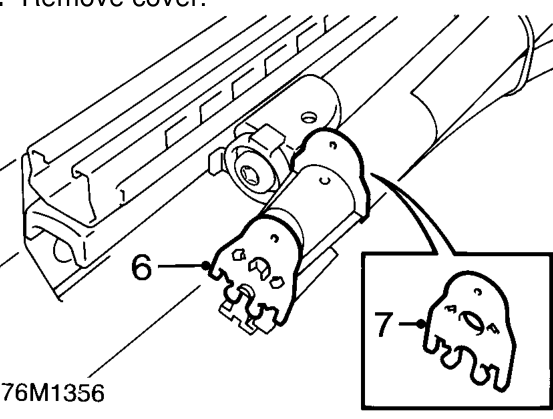

Front seat – Remove cover.
  1. Release RED service key from end of pre-tensioner.
  2. Insert service key into slot in pre-tensioner and push to secure.

NOTE: The service key must always be inserted in the pre-tensioner before removal to prevent accidental firing of the unit.

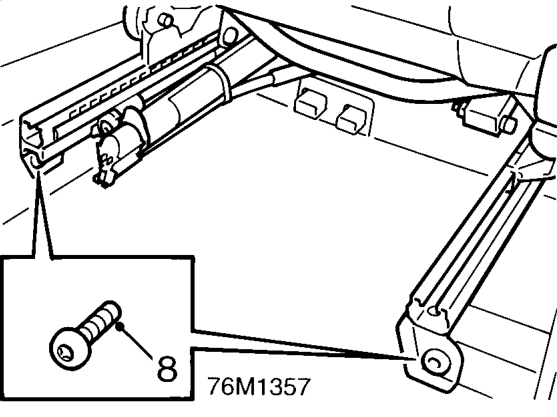

Front seat – Insert service key into slot in pre-tensioner and push to secure.
  1. Remove 2 Torx bolts securing seat slides to floor.
  2. Remove seat assembly from vehicle.
