WINDSCREEN WASHER RESERVOIR

Service repair no - 84.10.01

Remove

  1. Remove front bumper. See BODY, Exterior fittings.
  2. Position container to collect any fluid loss.

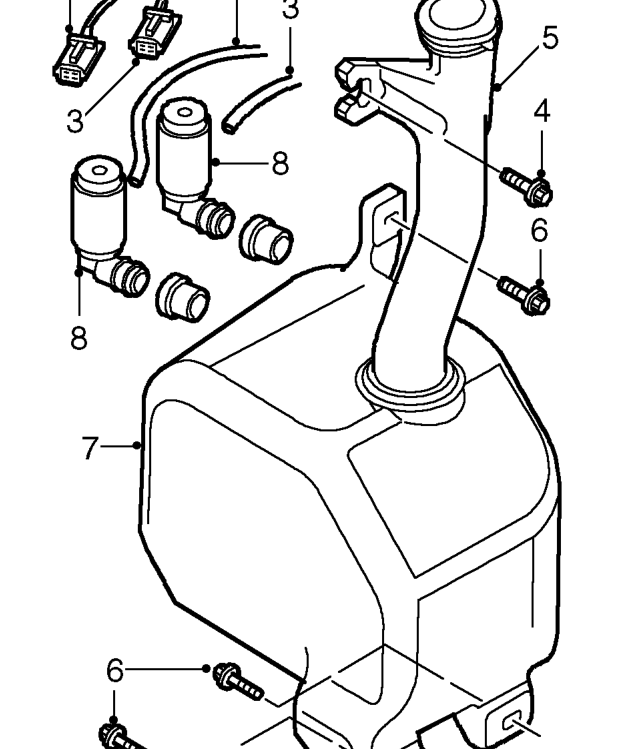

Windscreen washer reservoir – Position container to collect any fluid loss.
  1. Disconnect multiplugs and hoses from washer pumps.
  2. Remove bolt securing reservoir filler neck to body.
  3. Remove filler neck.
  4. Remove 3 bolts securing washer reservoir to body.
  5. Remove reservoir.
  6. Release pumps from reservoir and remove seals.

Refit

  1. Lubricate and fit pump seals to reservoir.
  2. Fit pumps to reservoir.
  3. Position reservoir and secure with bolts and screw.
  4. Connect hoses and multiplugs to pumps.
  5. Position filler neck and secure with bolt.
  6. Fit front bumper. See BODY, Exterior fittings.
