Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement16 · Steering
16 · Steering & suspension

Power steering rack components

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Description and operation › Power steering rack components
SteeringPower steering rack components

POWER STEERING RACK COMPONENTS

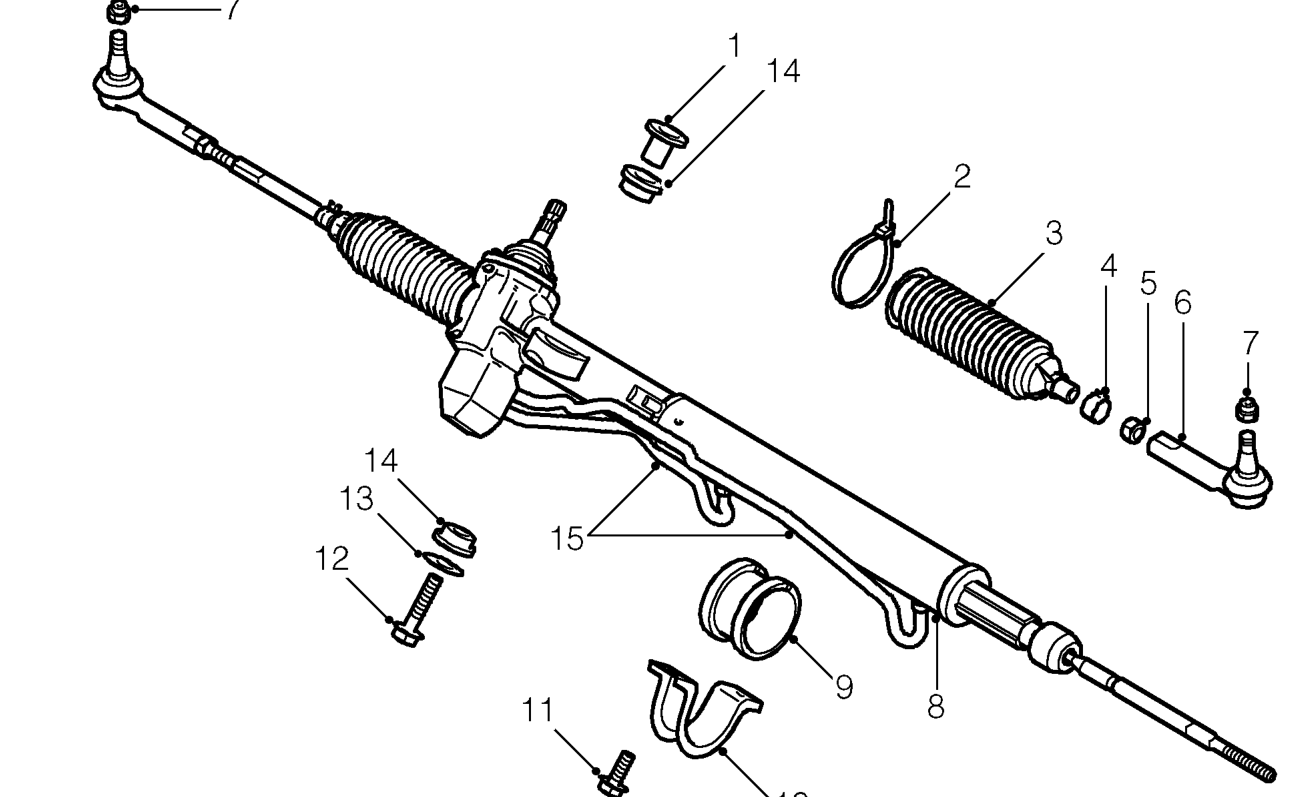

Power steering rack components
  1. Collar - mounting bush
  2. Cable tie
  3. Gaiter
  4. Clip - gaiter to track rod
  5. Locknut - track rod end
  6. Track rod end
  7. Nut
  8. Power steering gear assembly
  9. Mounting rubber - cushion
  10. Clamp
  11. Bolt - clamp
  12. Bolt - mounting
  13. Plain washer
  14. Mounting bush
  15. Pipes - valve body to power cylinders
