Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement16 · Steering
16 · Steering & suspension

Steering column components

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Description and operation › Steering column components
SteeringSteering column components

STEERING COLUMN COMPONENTS

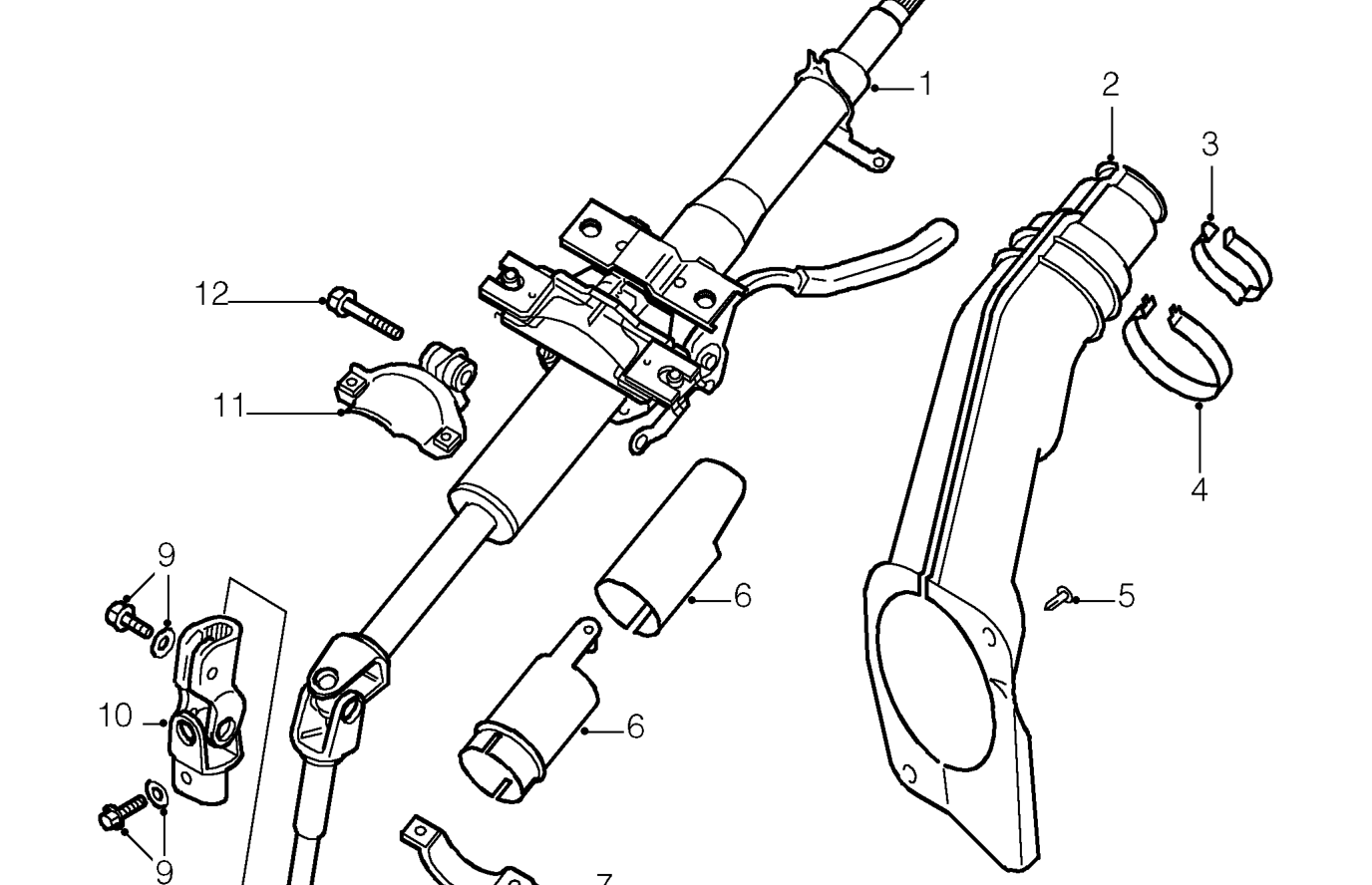

Steering column components
  1. Steering column assembly
  2. Cover - steering joint
  3. Clip - cover
  4. Clip - cover
  5. Trim clip - cover
  6. Retainer collar - steering column
  7. Lower clamp - upper half
  8. Bolt - lower clamp
  9. Bolt and lock washer - internal
  10. Universal joint
  11. Lower clamp - lower half
  12. Bolt
