Repairs › Cooling fan – 2.0 air conditioning
Cooling systemCooling fan – 2.0 air conditioning

Refit

  1. Position fan cowl, cooling fan and motor assembly to radiator ensuring fan cowl is located in clip.
  2. Fit fan cowl securing nuts and tighten to 5 Nm.
  3. Connect fan motor multiplug; secure multiplug to bracket.

COOLING FAN – 2.0
AIR CONDITIONING

Service Repair No. 26.25.23

Remove

  1. Disconnect battery earth lead.
  2. Remove front bumper, see BODY – Repairs.

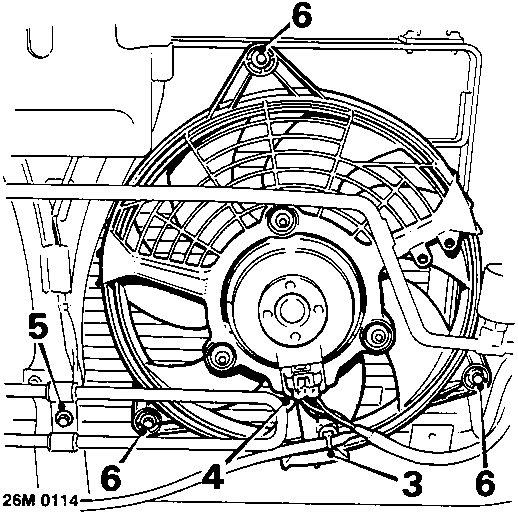

Diagram showing the cooling fan assembly with callout numbers 3, 4, 5, 6, and 6 pointing to various components including the fan cowl, motor harness, bolts, and condenser frame.
  1. Release fan motor harness from fan cowl.
  2. Disconnect fan motor multiplug.
  3. Remove bolt securing power steering oil cooler to bonnet platform support bracket.
  4. Remove three bolts securing fan assembly to condenser frame, remove fan assembly.

Refit

  1. Position fan assembly to condenser frame.
  2. Fit and tighten securing nuts to 8 Nm.
  3. Position power steering oil cooler to condenser frame.
  4. Fit oil cooler securing bolt and tighten to 9 Nm.
  5. Connect fan motor multiplug.
  6. Secure fan motor harness clip to fan cowl.
  7. Fit front bumper, see BODY – Repairs.
  8. Connect battery earth lead.

RADIATOR BLOCK – 1.4

Service Repair No. 26.40.04

Note: Models not fitted with Air Conditioning have only one thermostatic switch fitted to radiator.

Remove

  1. Disconnect the battery earth and positive leads.
  2. Release clamp and remove battery.
  3. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove underbelly panel, see BODY – Repairs.
  2. Drain cooling system, see MAINTENANCE.
  3. Remove cooling fan.
  4. Air conditioning: Remove condenser fan, see AIR CONDITIONING – Repairs.
  5. Remove 2 bolts securing engine air cleaner to battery tray.
  6. Disconnect air intake pipe from air cleaner.

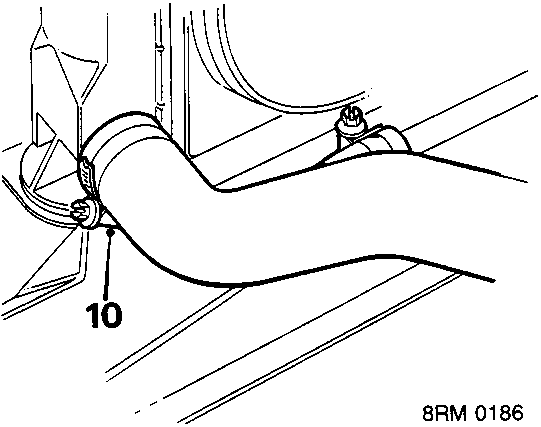

Diagram showing a hose connection with a clip labeled 10 being slackened to disconnect the hose from the radiator.
  1. Slacken clip bottom hose to radiator and disconnect hose.
