Cooling systemRemove

Service Repair No. Fan assembly – 26.25.23

Remove

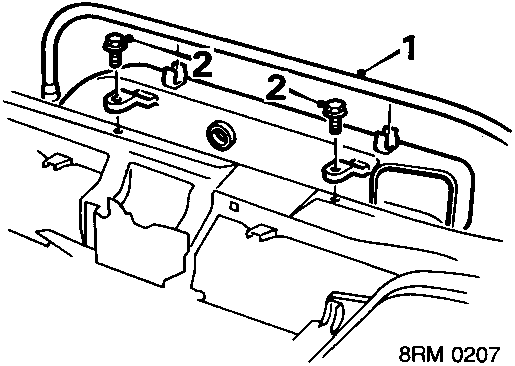

Diagram showing header tank hose and air cleaner intake pipe attachment points on bonnet platform
  1. Release header tank hose from air cleaner intake pipe.
  2. Remove 2 bolts securing air cleaner intake pipe to bonnet locking platform and release intake pipe from fixing stud on radiator.
  3. Release pipe from air cleaner connection and remove pipe.

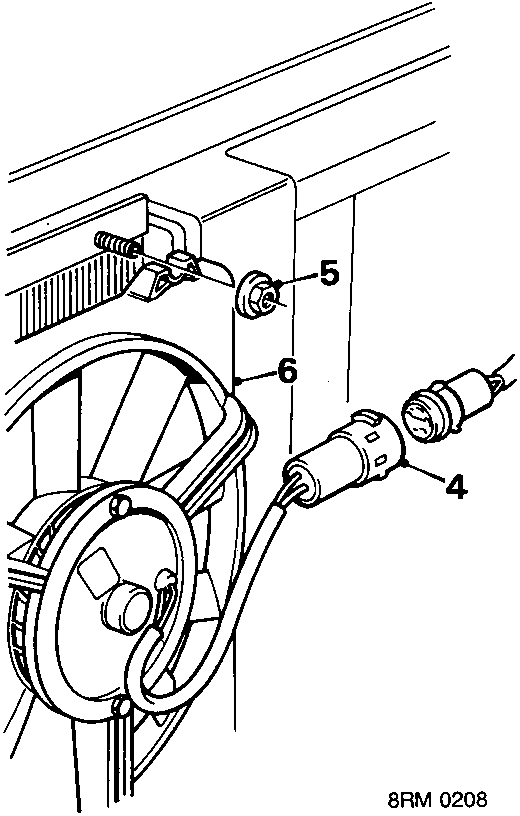

Diagram showing cooling fan assembly, multiplug connector, and mounting nuts on radiator
  1. Disconnect cooling fan multiplug.
  2. Remove 4 nuts securing cooling fan assembly and release cooling fan assembly from studs.
  3. Remove cooling fan assembly.

Refit

  1. Fit fan assembly.
  2. Position cooling fan assembly to studs, fit and tighten nuts to 3 Nm.
  3. Connect cooling fan multiplug.
  4. Fit air intake pipe and connect to air cleaner.
  5. Secure intake pipe to fixing stud.
  6. Fit and tighten bolts securing hose to bonnet platform to 9 Nm.
  7. Connect header tank hose to air intake pipe.

COOLING FAN – 2.0
NON AIR CONDITIONING

Service Repair No. 26.25.23

Remove

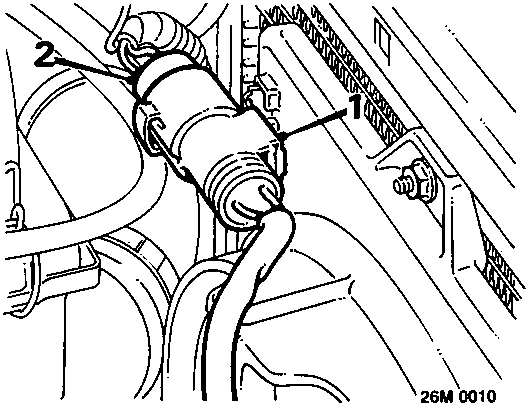

Diagram showing fan motor multiplug connector and bracket location
  1. Release fan motor multiplug from bracket.
  2. Disconnect fan motor multiplug.

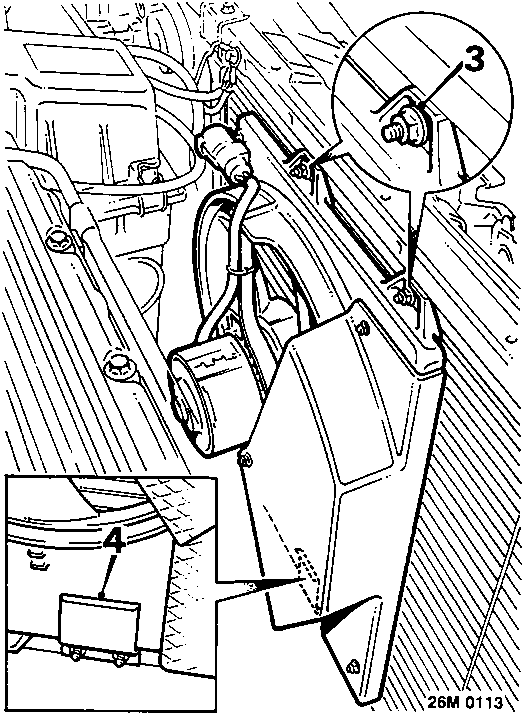

Diagram showing fan cowl mounting nuts and clip securing fan cowl to radiator
  1. Remove 2 nuts securing fan cowl to radiator.
  2. Release fan cowl from clip; remove fan cowl, cooling fan and motor assembly.
