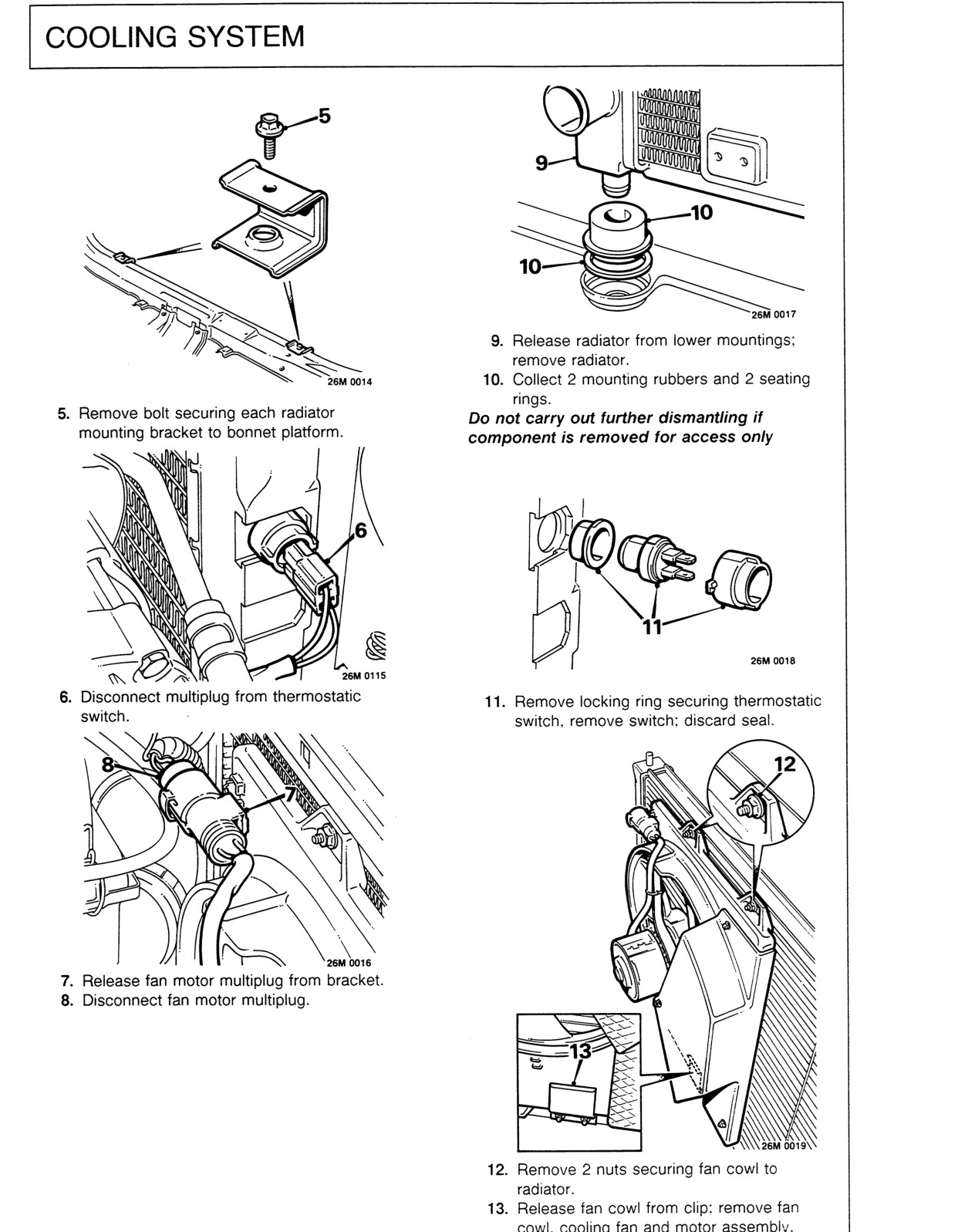

Cooling systemOriginal page

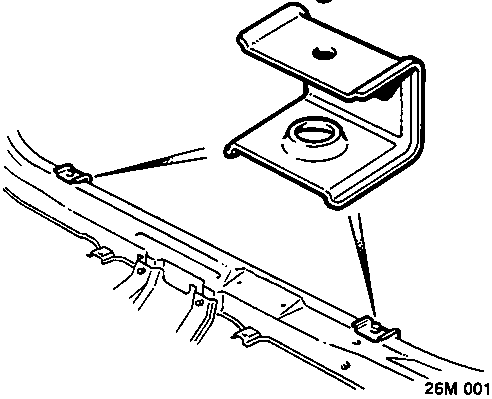

Diagram showing bolt securing radiator mounting bracket to bonnet platform
  1. Remove bolt securing each radiator mounting bracket to bonnet platform.

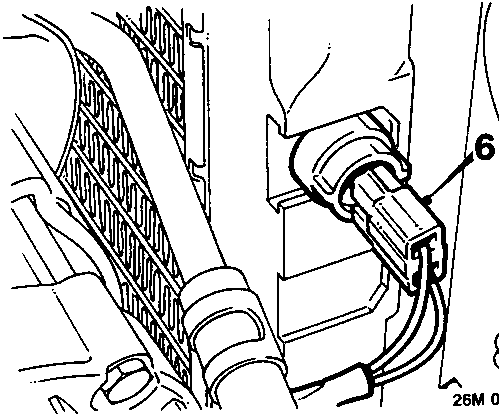

Diagram showing multiplug connection to thermostatic switch
  1. Disconnect multiplug from thermostatic switch.

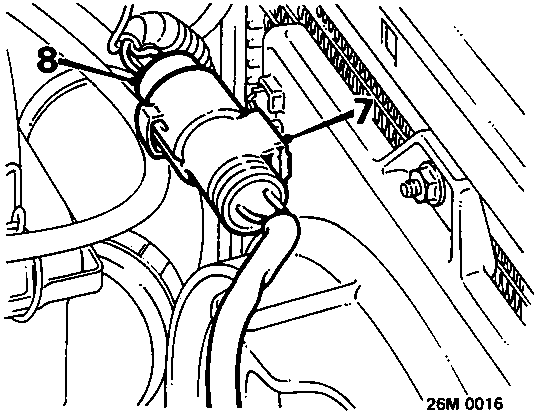

Diagram showing fan motor multiplug release from bracket
  1. Release fan motor multiplug from bracket.
  2. Disconnect fan motor multiplug.

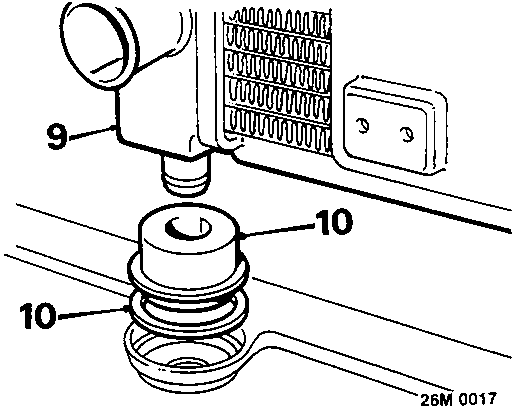

Diagram showing release of radiator from lower mountings, including mounting rubbers and seating rings
  1. Release radiator from lower mountings; remove radiator.
  2. Collect 2 mounting rubbers and 2 seating rings.

Do not carry out further dismantling if component is removed for access only

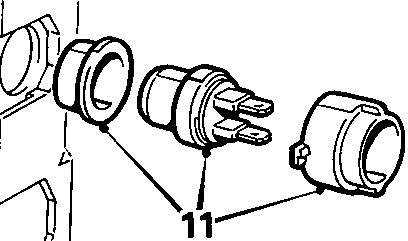

Diagram showing removal of locking ring and seal from thermostatic switch
  1. Remove locking ring securing thermostatic switch, remove switch; discard seal.

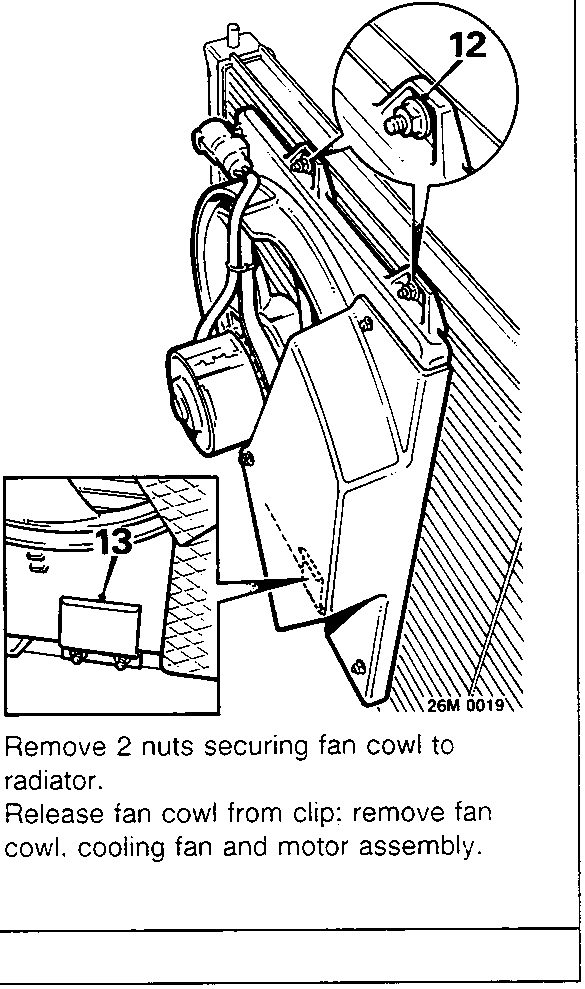

Diagram showing removal of nuts securing fan cowl to radiator and release of fan cowl assembly
  1. Remove 2 nuts securing fan cowl to radiator.
  2. Release fan cowl from clip: remove fan cowl, cooling fan and motor assembly.
