Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual12 · Cooling system
12 · Engine

Expansion tank – 1.4

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Expansion tank – 1.4
Cooling systemExpansion tank – 1.4
  1. Position air conditioning pipes to cylinder head, coolant rail and bonnet platform.
  2. Fit pipe securing bolts and tighten to 8 Nm.

All Models

  1. Connect hose to coolant pump housing and coolant rail, ensure clip screws are positioned away from radiator; tighten clips.
  2. Fit oxygen sensor, see MODULAR ENGINE MANAGEMENT SYSTEM – MPi – Repairs.
  3. Air Conditioning models: Fit a new receiver/drier, see AIR CONDITIONING – Repairs.

Naturally aspirated models

  1. Secure harness to battery tray, fit tray.
  2. Fit battery tray bolts and tighten to 9 Nm.
  3. Fit air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – MPi – Repairs.
  4. Refill cooling system, see MAINTENANCE.
  1. Turbo models: Fit intercooler, see MODULAR ENGINE MANAGEMENT SYSTEM – MPi – Repairs.
  2. Air Conditioning models: Charge air conditioning. see AIR CONDITIONING – Adjustments.

EXPANSION TANK – 1.4

Service Repair No. 26.15.01

Remove

  1. Position drain tray beneath expansion tank.
  2. Release power steering reservoir from mounting bracket; if fitted.

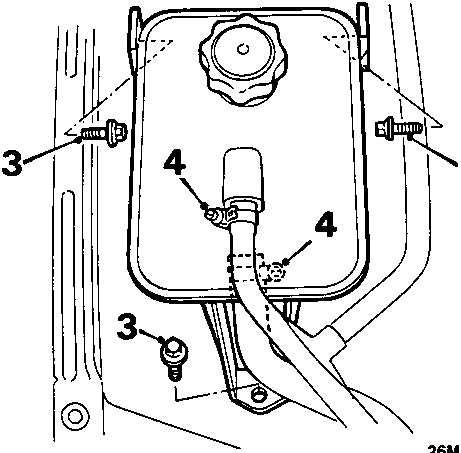

Diagram of expansion tank showing securing screws labeled 3 and hose connections labeled 4
  1. Remove 3 screws securing expansion tank to body and bracket.
  2. Slacken clips and disconnect 2 hoses from expansion tank.

Refit

  1. Connect hoses to expansion tank and tighten clips.
  2. Position expansion tank to body, fit bolts and tighten to 5 Nm.
  3. Top-up coolant, see MAINTENANCE.
