Cooling systemAll models

All models

Diagram showing release of radiator from lower fixings, with callout number 17

8RM 0213

  1. Release radiator from lower fixings.
  2. Remove radiator.

Refit

  1. Fit cooling fan to radiator.
  2. Fit condenser fan to radiator, see AIR CONDITIONING – Repairs.
  3. Fit radiator to vehicle.
  4. Manoeuvre radiator to position.

Automatic only

  1. Connect oil cooler pipes to radiator and tighten unions.
  2. Secure pipes to base of radiator.

All models

  1. Fit top brackets to radiator and tighten bracket bolts to 9 Nm.
  2. Fit air cleaner intake pipe.
  3. Connect pipe to air cleaner connection.
  4. Secure intake pipe to fixing stud.
  5. Fit and tighten bolts intake pipe to bonnet platform to 9 Nm.
  6. Connect top hose to radiator.
  7. Tighten hose clip screw.
  8. Position engine earth lead to bonnet platform.
  9. Fit and tighten earth lead screw.
  10. Connect header tank hose to air intake pipe.
  11. Refill cooling system, see MAINTENANCE.
  12. Top up automatic gearbox oil if fitted, see MAINTENANCE.

RADIATOR BLOCK – 2.0 – AIR CONDITIONING

Service Repair No. 26.40.04

Remove

  1. Turbo models: Remove intercooler, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs.

Naturally aspirated models

  1. Remove air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs
  2. Drain cooling system, see MAINTENANCE.

All Models

  1. Remove alternator, see ELECTRICAL – Repairs.
  2. Discharge air conditioning system see AIR CONDITIONING – Adjustments.

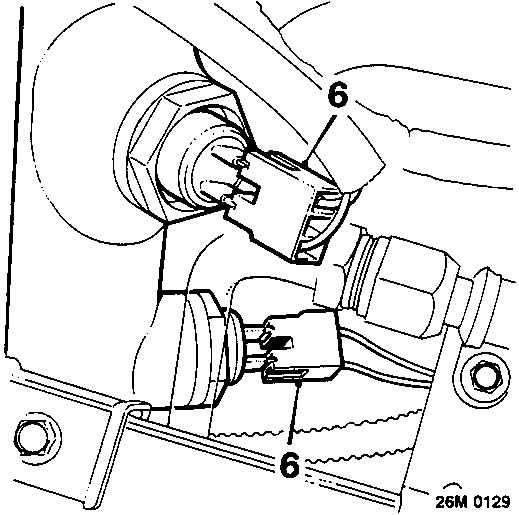

Diagram showing disconnection of harness from thermostatic switches, with callout number 6

26M 0129

  1. Naturally aspirated models: Disconnect harness from thermostatic switches.

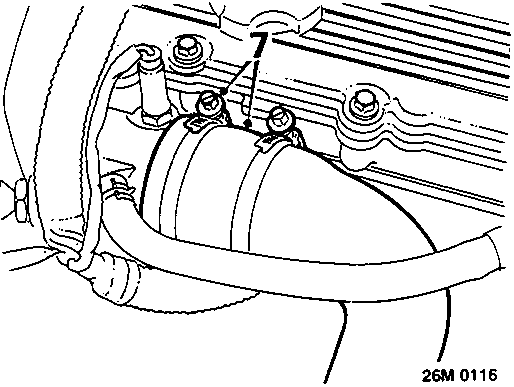

Diagram showing slackening of clip on top hose at outlet elbow, with callout number 7

26M 0116

  1. Slacken clip, disconnect top hose from outlet elbow.
