Cooling systemRefit · page 2 of 2

Service Repair No. 26.40.04

Remove.

  1. Drain cooling system, see MAINTENANCE.
  2. Remove cooling fan.
  3. Remove condenser fan if fitted, see AIR CONDITIONING – Repairs.
  4. Release header tank hose from air cleaner intake pipe.

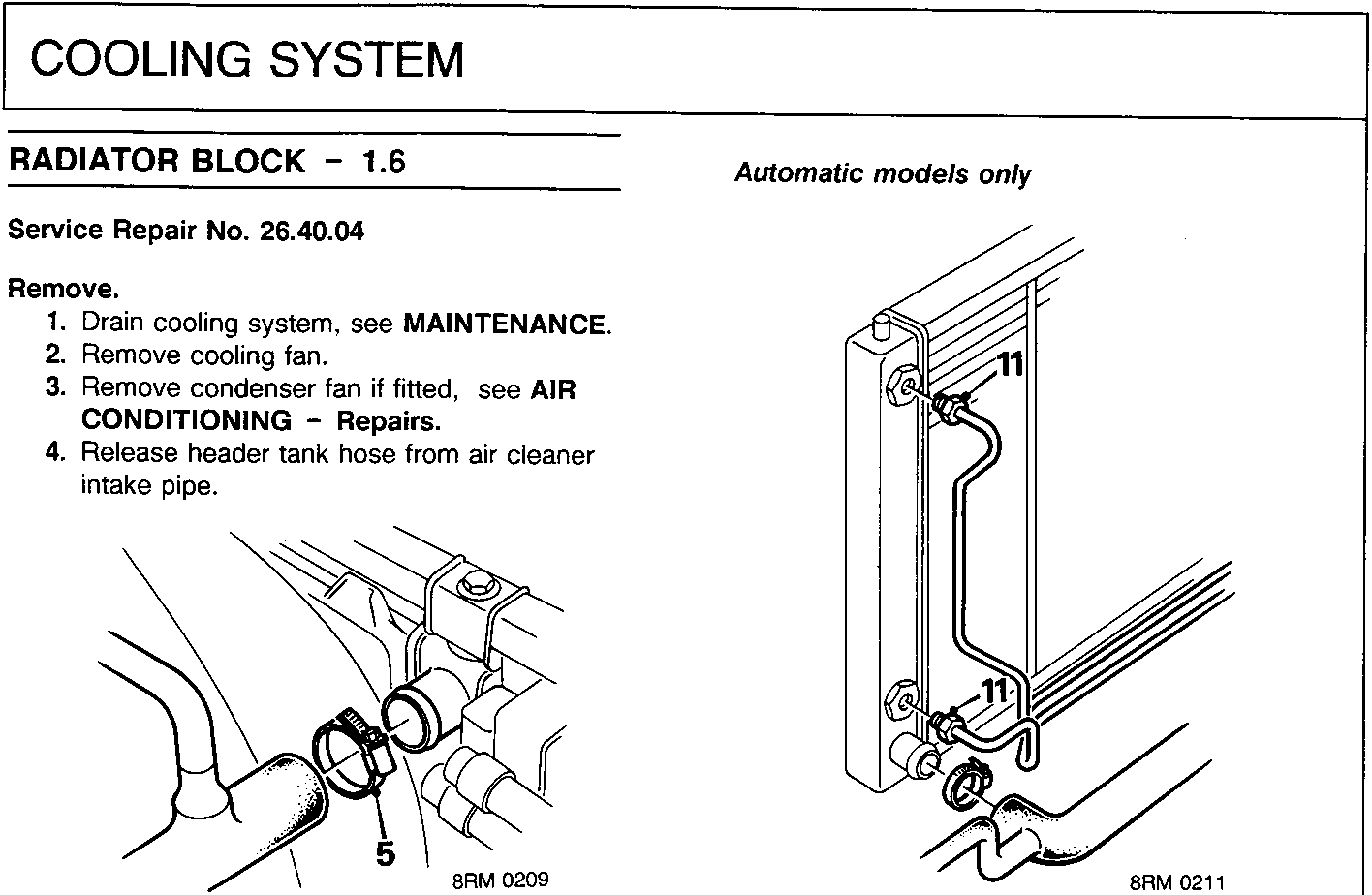

Diagram showing release of header tank hose from air cleaner intake pipe (8RM 0209) and oil cooler unions to radiator for automatic models (8RM 0211)
  1. Slacken clip screw top and bottom hoses to radiator.
  2. Release hoses from radiator.

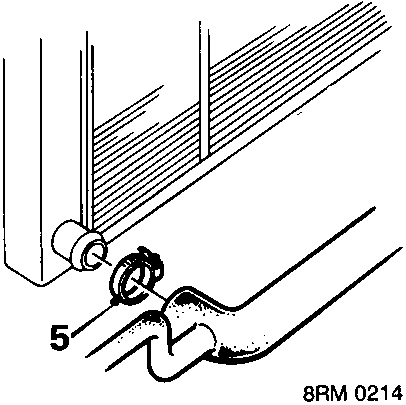

Diagram showing slackening of clip screw on hoses to radiator (8RM 0214)
  1. Remove 2 bolts air cleaner intake pipe to bonnet platform.
  2. Release intake pipe from fixing stud on radiator bracket.
  3. Release pipe from air cleaner connection.
  4. Remove pipe.

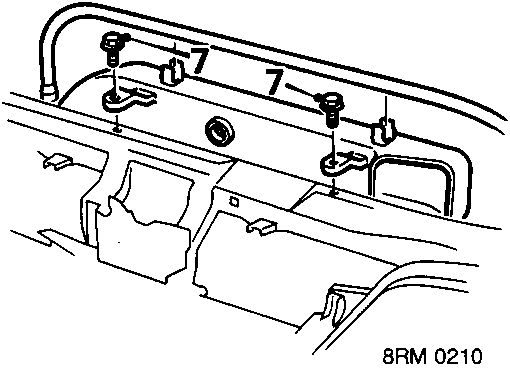

Diagram showing removal of bolts securing air cleaner intake pipe to bonnet platform (8RM 0210)

Automatic models only

  1. Slacken 2 oil cooler unions to radiator.
  2. Release 2 unions from radiator.

All models

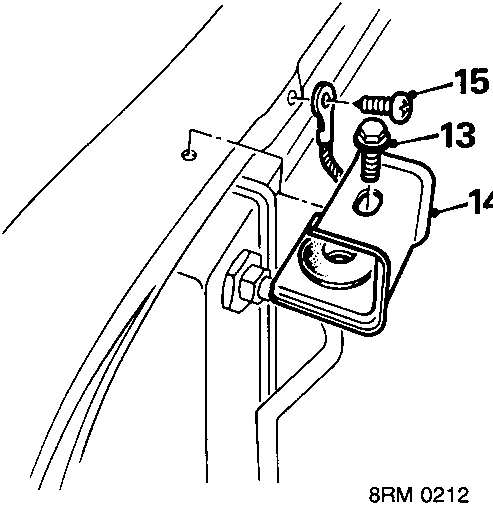

Diagram showing removal of bolts for radiator support bracket, support brackets, and engine earth lead screw (8RM 0212)
  1. Remove 2 bolts radiator support bracket to bonnet platform.
  2. Remove 2 support brackets.
  3. Remove screw engine earth lead to bonnet platform.

Automatic models only

  1. Release oil cooler pipes from bottom of radiator.
Illustrates removal of front bumper cover on vehicle
