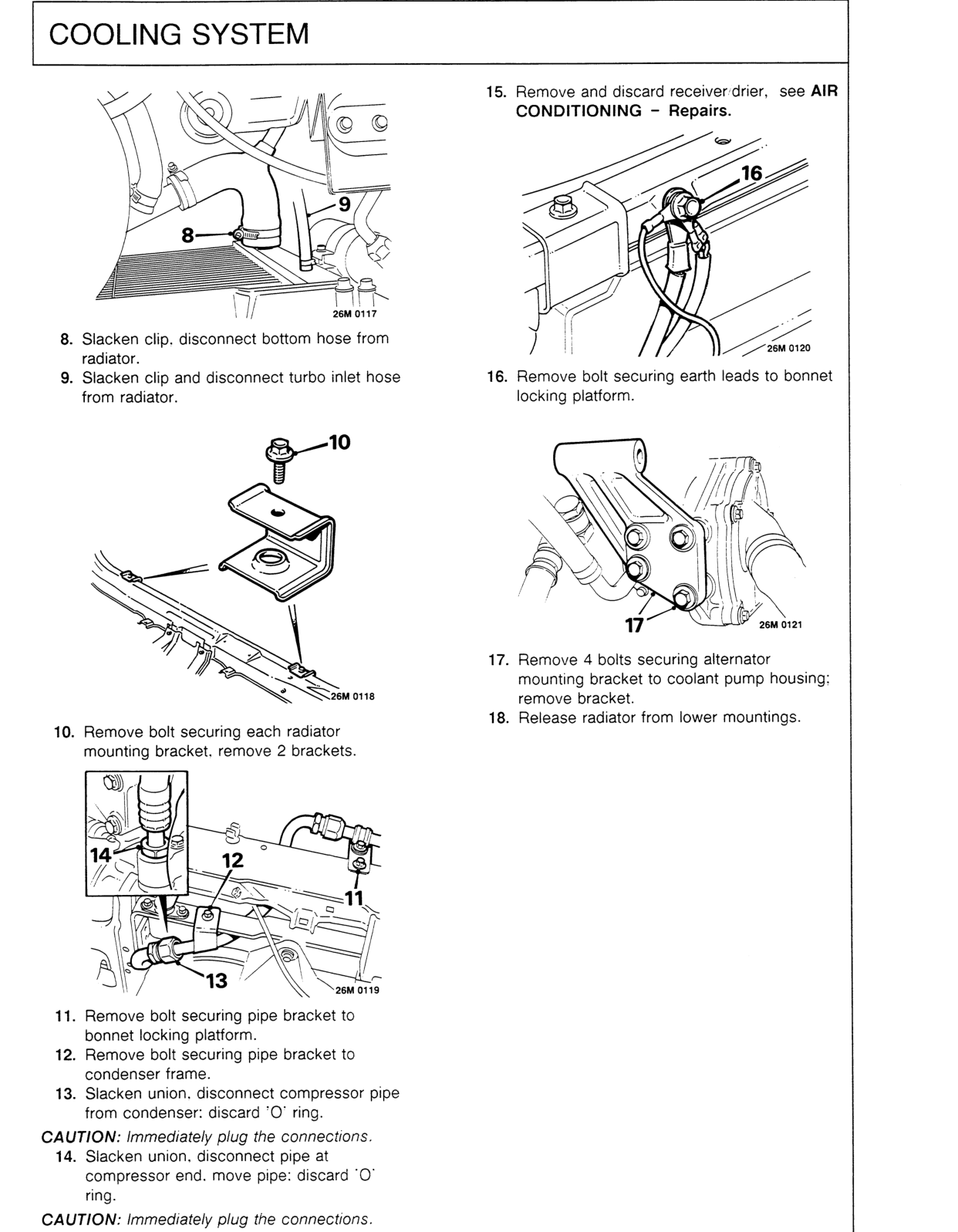

Cooling systemOriginal page

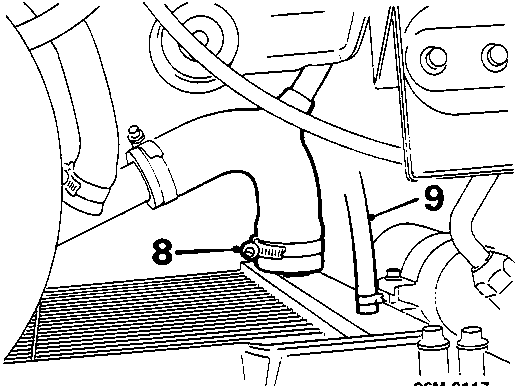

Diagram showing bottom hose clip (8) and turbo inlet hose bracket (9) on the radiator assembly.
  1. Slacken clip, disconnect bottom hose from radiator.
  2. Slacken clip and disconnect turbo inlet hose from radiator.

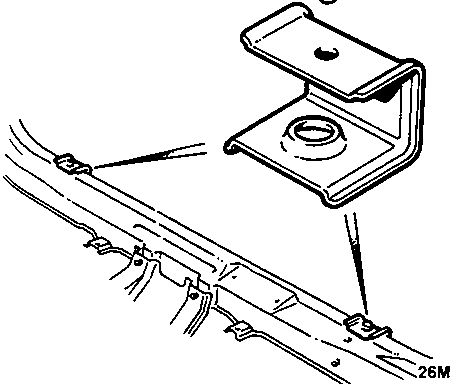

Diagram showing bolt (10) securing a radiator mounting bracket to the bonnet locking platform.
  1. Remove bolt securing each radiator mounting bracket, remove 2 brackets.

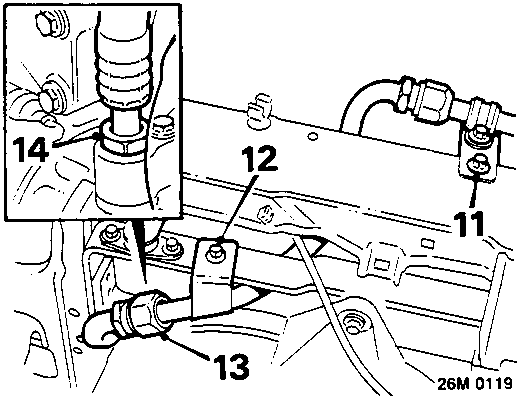

Diagram showing pipe brackets (11, 12), compressor pipe union (13), and condenser connections (14).
  1. Remove bolt securing pipe bracket to bonnet locking platform.
  2. Remove bolt securing pipe bracket to condenser frame.
  3. Slacken union, disconnect compressor pipe from condenser; discard 'O' ring.

CAUTION: Immediately plug the connections.

  1. Slacken union, disconnect pipe at compressor end, move pipe; discard 'O' ring.

CAUTION: Immediately plug the connections.

  1. Remove and discard receiver drier, see AIR CONDITIONING – Repairs.

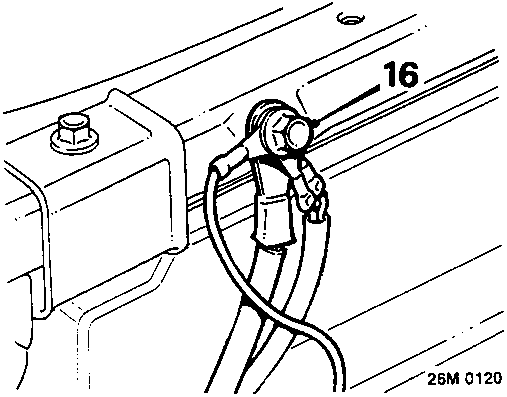

Diagram showing bolt (16) securing earth leads to the bonnet locking platform.
  1. Remove bolt securing earth leads to bonnet locking platform.

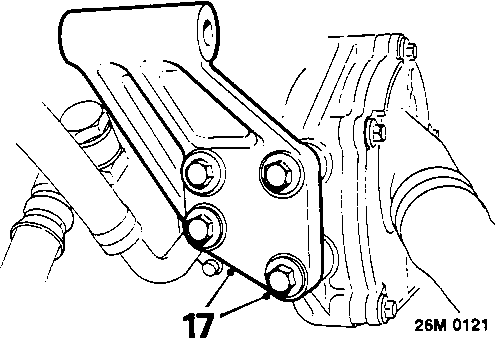

Diagram showing bolts (17) securing the alternator mounting bracket to the coolant pump housing.
  1. Remove 4 bolts securing alternator mounting bracket to coolant pump housing; remove bracket.
  2. Release radiator from lower mountings.
Illustrates removal of lower radiator support bracket
