Repairs › Refit
Cooling systemRefit

Do not carry out further dismantling if component is removed for access only

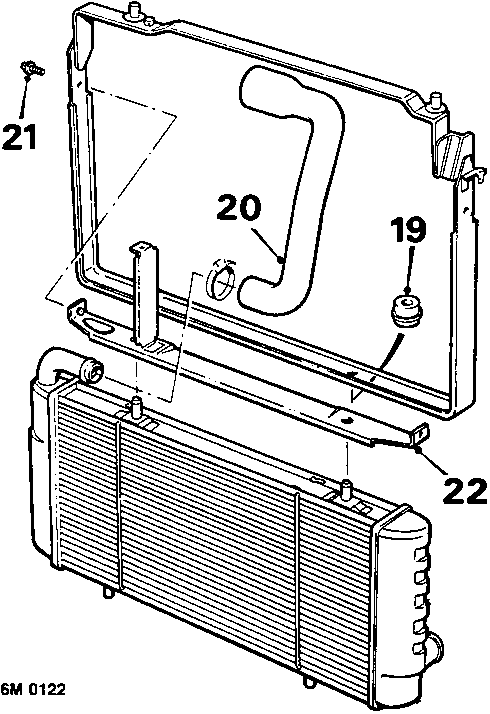

Diagram of radiator assembly showing components 19, 20, 21, 22 and mounting hardware.
  1. Remove radiator, recover mounting rubbers.
  2. Slacken clip, disconnect top hose from radiator.
  3. Remove 3 bolts securing radiator to frame, remove radiator.
  4. Remove frame cross rail from radiator.
  5. Transfer components removed to replacement radiator, tighten radiator to frame securing bolts to 8 Nm.

Refit

  1. Fit mounting rubbers to lower mountings.
  2. Position radiator to lower mountings.
  3. Position alternator bracket to coolant pump housing, fit and tighten bolts to 25 Nm.
  4. Position earth leads to bonnet locking platform, fit bolt and tighten to 9 Nm.
  5. Lubricate new 'O' rings with compressor oil, see AIR CONDITIONING – Adjustments.
  6. Fit 'O' rings to unions, position pipe.
  7. Connect unions and tighten to 25 Nm.
  8. Position pipe brackets to bonnet locking platform and condenser frame, fit and tighten bolts to 8 Nm.
  9. Fit new receiver/drier, see AIR CONDITIONING – Repairs.
  10. Fit radiator mounting brackets, fit bolts and tighten to 8 Nm.
  11. Connect bottom hose to radiator, tighten clip.
  12. Turbo models: Connect turbo inlet hose to radiator and tighten clip.
  13. Connect top hose to outlet elbow, tighten clip to 3.5 Nm.
  14. Naturally aspirated models: Connect harness to thermostatic switches.
  15. Fit alternator, see ELECTRICAL – Repairs.
  16. Turbo models: Fit intercooler see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs – MPi.
  17. Naturally aspirated models: Fit air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs – MPi.
  18. Refill cooling system, see MAINTENANCE.
  19. Charge air conditioning system see AIR CONDITIONING – Adjustments.

RADIATOR BLOCK – 2.0 – NON AIR CONDITIONING

Service Repair No. 26.40.04

Remove

  1. Drain cooling system, see MAINTENANCE.
  2. Remove air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs – MPi.

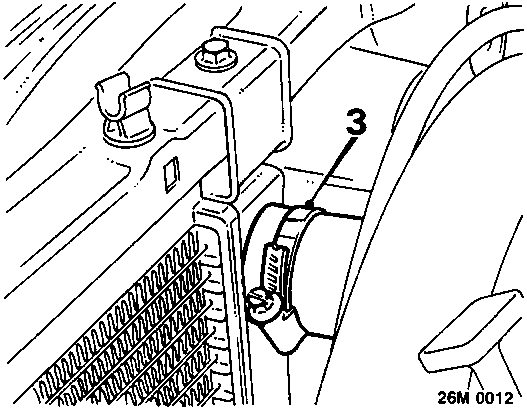

Close-up diagram showing a clip (3) securing a hose to the radiator.
  1. Slacken clip, disconnect top hose from radiator.

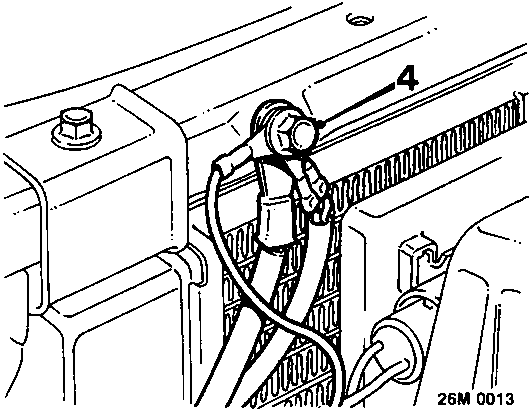

Diagram showing a bolt (4) securing earth leads to the bonnet locking platform near the radiator.
  1. Remove bolt securing earth leads to bonnet platform.
