Refit

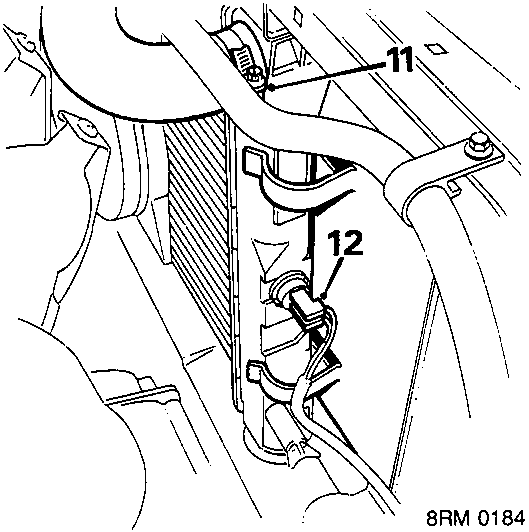

11. Slacken clip top hose to radiator, release hose from radiator and move aside.
12. Disconnect Lucars from thermostatic switches.

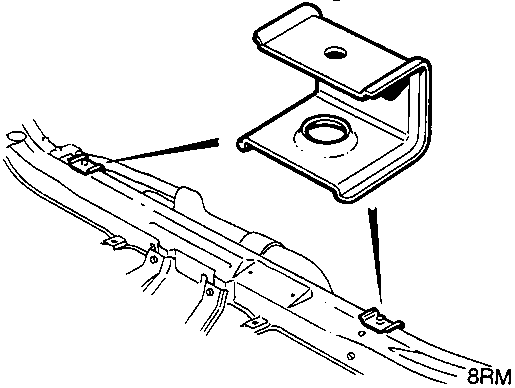

13. Air conditioning: Remove bolt securing air conditioning pipe clip to bracket.
14. Remove 2 bolts securing radiator top brackets to bonnet platform, remove brackets.

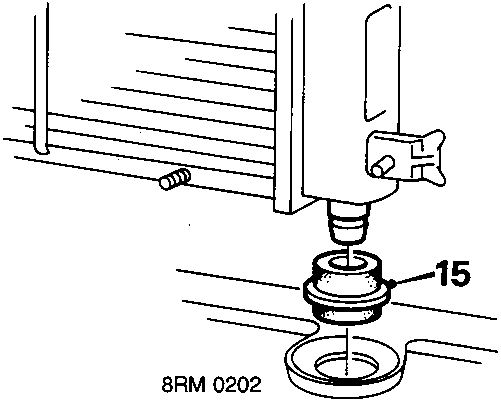

15. Remove radiator from lower fixings.
16. Manoeuvre radiator to left hand side of engine bay.
17. Twist and remove radiator right hand end uppermost.

Do not carry out further dismantling if component is removed for access only

18. Remove thermostatic switches.
19. Remove 2 lower mounting rubbers from radiator.
20. Transfer components removed to new radiator.

Refit

1. Manoeuvre radiator into position and locate lower fixings.
2. Connect bottom hose to radiator.
3. Tighten hose clip screw.
4. Connect top hose to radiator.
5. Tighten hose clip screw.
6. Fit top mounting bracket to radiator and tighten bolts to 9 Nm.
7. Connect Lucars to thermostatic switches.
8. Air conditioning models: Align air conditioning pipe clips to bracket, fit and tighten bolts to 9 Nm.
9. Connect air intake pipe to air cleaner, position air cleaner to battery tray, fit and tighten bolts to 9 Nm.
10. Air conditioning models: Fit condenser fan and cowl assembly see AIR CONDITIONING – Repairs.
11. Fit radiator cooling fan
12. Fit battery.
13. Fit underbelly panel, see BODY
14. Remove stand(s) and lower vehicle.
15. Refill cooling system, see MAINTENANCE.
