Cooling systemThermostat – 2.0 – air conditioning

THERMOSTAT – 2.0 – AIR CONDITIONING

Service Repair No. 26.45.09

Remove

  1. Drain cooling system, see MAINTENANCE.

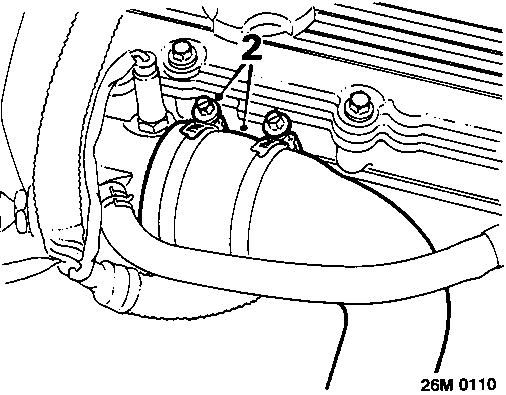

Diagram showing thermostat location with callout number 2
  1. Slacken clip. disconnect top hose from coolant outlet elbow.

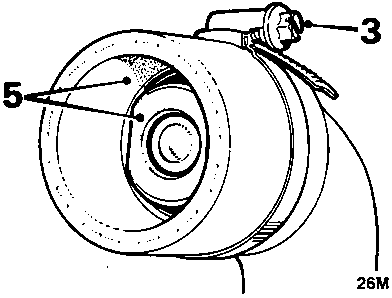

Diagram showing thermostat and top hose connection with callout numbers 3, 4, 5
  1. Remove clip securing thermostat in top hose.
  2. Apply liquid soap to top hose and thermostat to assist thermostat removal.
  3. Remove thermostat.

Refit

  1. Position thermostat in top hose, fit and tighten clip.
  2. Connect top hose to coolant outlet elbow, tighten clip to 3.5 Nm.
  3. Refill cooling system, see MAINTENANCE.

COOLING FAN – 1.4

Service Repair No. Fan assembly – 26.25.23

Remove

  1. Remove underbelly panel, see BODY – Repairs.
  2. Remove air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs – MPi.

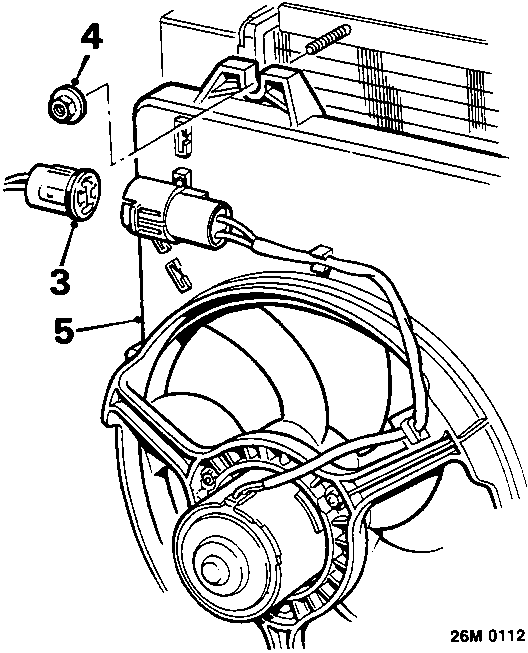

Diagram showing cooling fan cowl assembly with callout numbers 3, 4, 5
  1. Disconnect multiplug from cooling fan.
  2. Remove 4 nuts securing cowl to radiator and release cowl from studs.
  3. Remove cowl assembly.

Refit

  1. Fit cowl assembly.
  2. Move coolant top hose clear and align cowl to studs on radiator.
  3. Fit and tighten nuts securing cowl 3 Nm.
  4. Connect cooling fan multiplug.
  5. Fit air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs – MPi.
  6. Fit under belly panel. see BODY – Repairs.
