Engine 1.6 D.O.H.C.Camshaft front oil seal · page 1 of 2

Refit

  1. Clean the camshaft belt gears and pulleys.
  2. Clean both belt guide plates.
  3. Ensure that camshaft gears are aligned at No. 1 piston T.D.C.

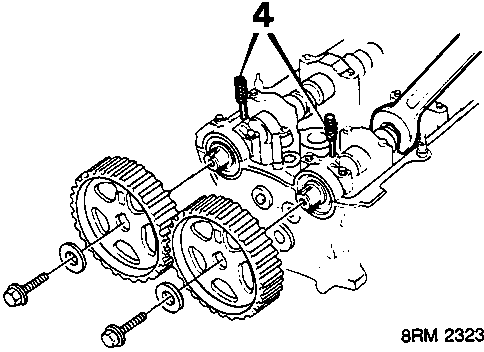

Diagram showing camshafts with alignment pins inserted into the gear teeth
  1. Fit alignment pins 18G 1580 to camshafts.
  2. Fit timing belt to crankshaft gear.

Note: If timing belt is being refitted, ensure it is fitted to have the same direction of rotation as originally.

  1. Fit timing belt to remaining gears.
  2. Remove alignment pins from camshafts.
  3. Fit the belt guide plate, concave side in, to the crankshaft.
  4. Slacken belt tensioner bolt.
  5. Fit camshaft cover gasket.
  6. Fit the timing belt lower cover
  7. Tension timing belt, see Engine – 1.6 – Adjustments.

CAMSHAFT FRONT OIL SEAL

Service Repair No. 12.13.05

  1. Remove timing belt top cover and seal
  2. Remove camshaft cover gasket
  3. Power Steering: Remove power steering belt, see MAINTENANCE.
  4. Air conditioning: Remove air conditioning compressor belt, see MAINTENANCE.

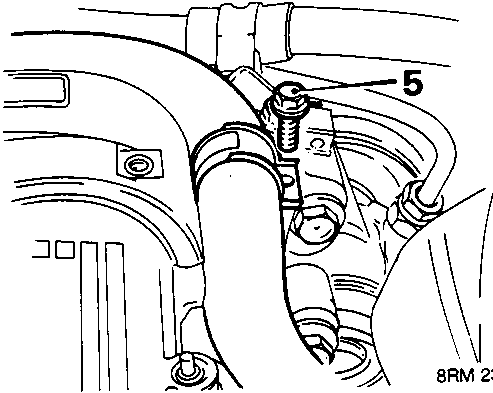

Detail view of the upper engine area showing a bolt securing an air conditioning hose to a bracket
  1. Remove bolt, air conditioning hose to power steering pump bracket.

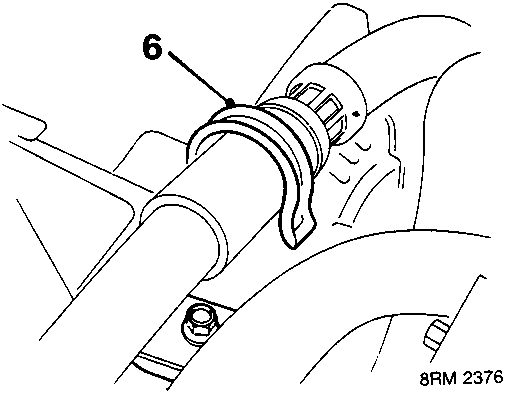

Close-up detail of a power steering hose secured by a clip on a bracket
  1. Remove bolt, power steering hose bracket to power steering pump bracket, and release hose from clip.

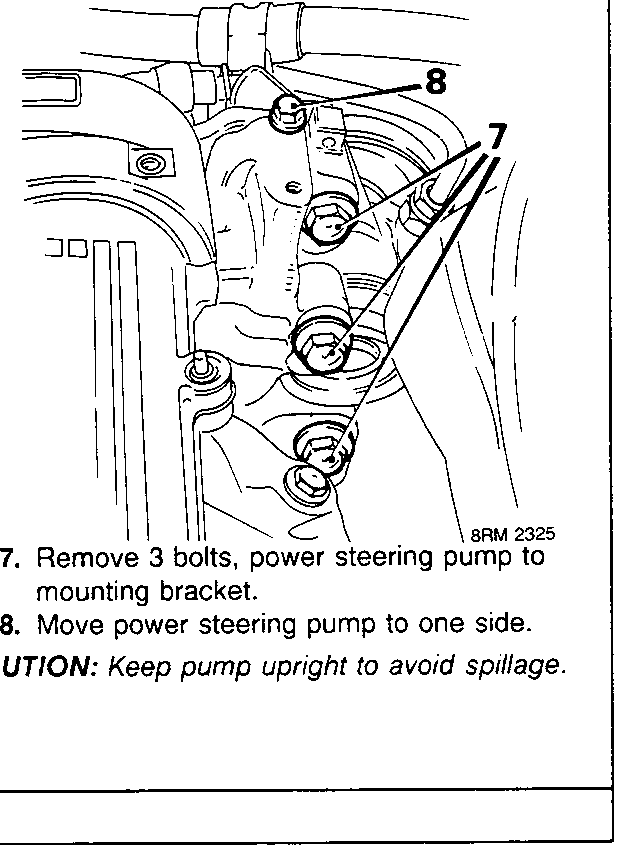

View of the power steering pump mounting area showing three bolts securing the pump to the engine block
  1. Remove 3 bolts, power steering pump to mounting bracket.
  2. Move power steering pump to one side.

CAUTION: Keep pump upright to avoid spillage.
