Engine 1.6 D.O.H.C.Refit

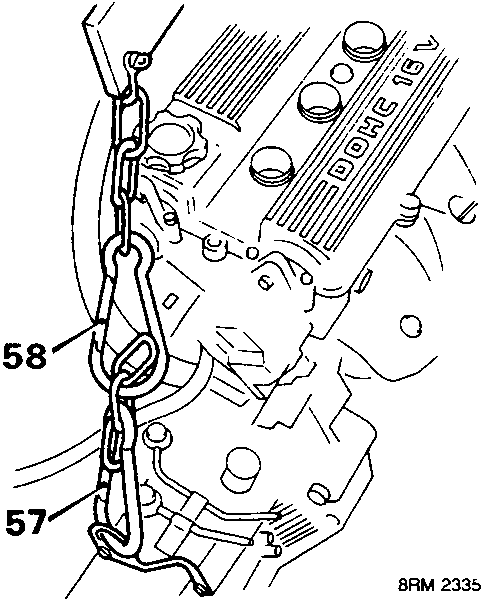

Diagram showing lifting chains attached to engine lift tilt adapter with callout numbers 57 and 58
  1. Disconnect one lifting chain from engine lift tilt adapter, tool 18G 1598, and attach to lift point on gearbox.
  2. Connect both lifting chains together.

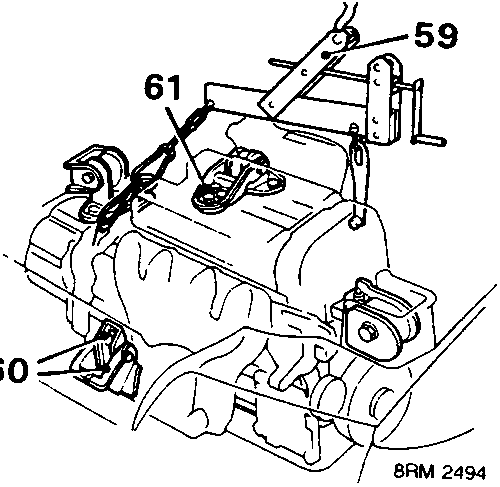

Diagram showing engine lift tilt adapter attached to lifting chains and bracket with callout numbers 59, 60, 61
  1. Attach engine lift tilt adapter to lifting chains and lifting bracket, and support weight of engine.
  2. Remove 2 bolts, front mounting to gearbox.

CAUTION: Do not slacken front mounting through bolt.

  1. Remove 3 bolts, rear mounting bracket to gearbox bracket.
  2. Remove rear mounting through bolt, raise mounting bracket clear of gearbox.

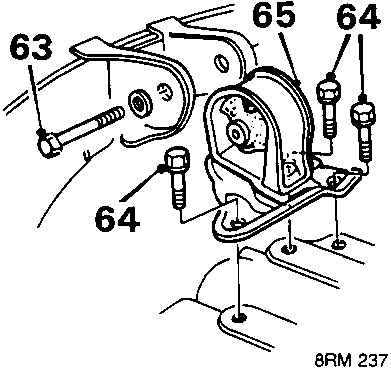

Diagram showing R.H. engine mounting with callout numbers 63, 64, 65
  1. Remove through bolt, R.H. mounting to body.
  2. Remove 3 bolts, R.H. mounting to mounting plate.
  3. Remove R.H. mounting.

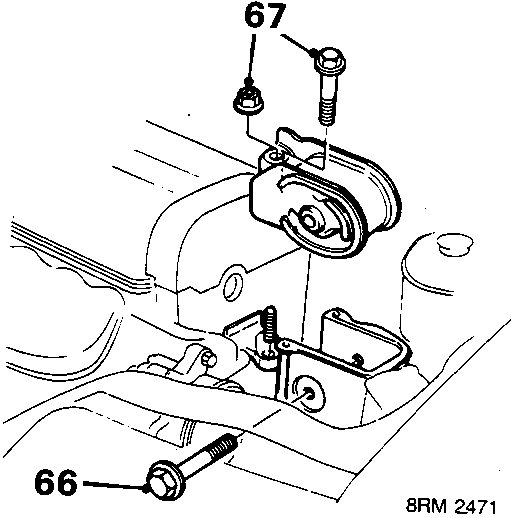

Diagram showing L.H. engine mounting with callout numbers 66, 67
  1. Remove through bolt, L.H. engine mounting to body.
  2. Remove 1 bolt and 1 nut, L.H. mounting bracket to cylinder block and remove mounting.
  3. Raise engine and gearbox 100 mm, check that all components are disconnected and lift clear of engine compartment.

CAUTION: Ensure lifting chains do not contact camshaft cover.

Refit

  1. Attach engine lift tilt adaptor tool 18G 1598 to engine and gearbox brackets. Lower engine and gearbox into position ensuring that front mounting bracket is aligned to gearbox.

CAUTION: Ensure lifting chains do not contact camshaft cover.

  1. Fit L.H. mounting tighten bolts to 39 Nm. Fit through bolt and washer, do not tighten.
  2. Align front mounting bracket to gearbox; tighten bolts to 55 Nm. Fit NEW through bolt and washer, do not tighten.
