Engine 1.6 D.O.H.C.Power steering · page 2 of 2
  1. Disconnect speedometer cable from gearbox.
  2. Remove front exhaust pipe, see MANIFOLD & EXHAUST – Repairs.

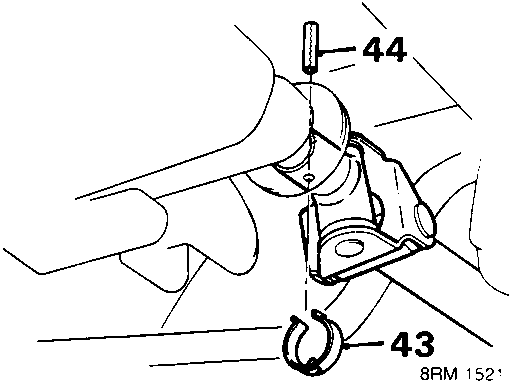

Diagram showing selector rod roll pin and clip being removed with a punch
  1. Pull back gaiter and remove clip retaining selector rod roll pin.
  2. Using a suitable punch, drive out selector rod roll pin.

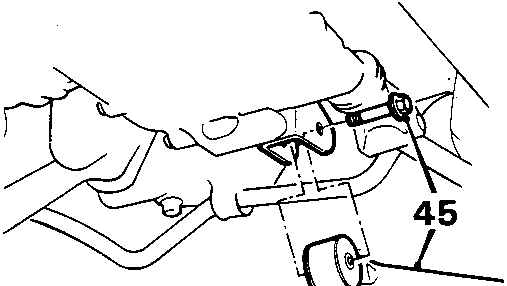

Diagram showing gear change steady bar bolt being removed from gearbox
  1. Remove bolt and disconnect gear change steady bar from gearbox.
  2. Disconnect clutch cable from release lever, see CLUTCH – Repairs – Clutch Cable – 1.6.

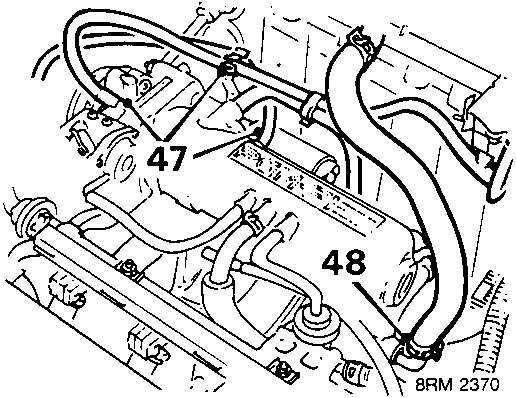

Diagram showing air conditioning pipe and brake servo vacuum hose disconnected from engine
  1. Air conditioning: Release air conditioning pipe from engine clip.
  2. Disconnect brake servo vacuum hose from pipe.

CAUTION: Plug the connections.

  1. Disconnect 2 vacuum pipes from inlet manifold and clip.

CAUTION: Plug the connections.

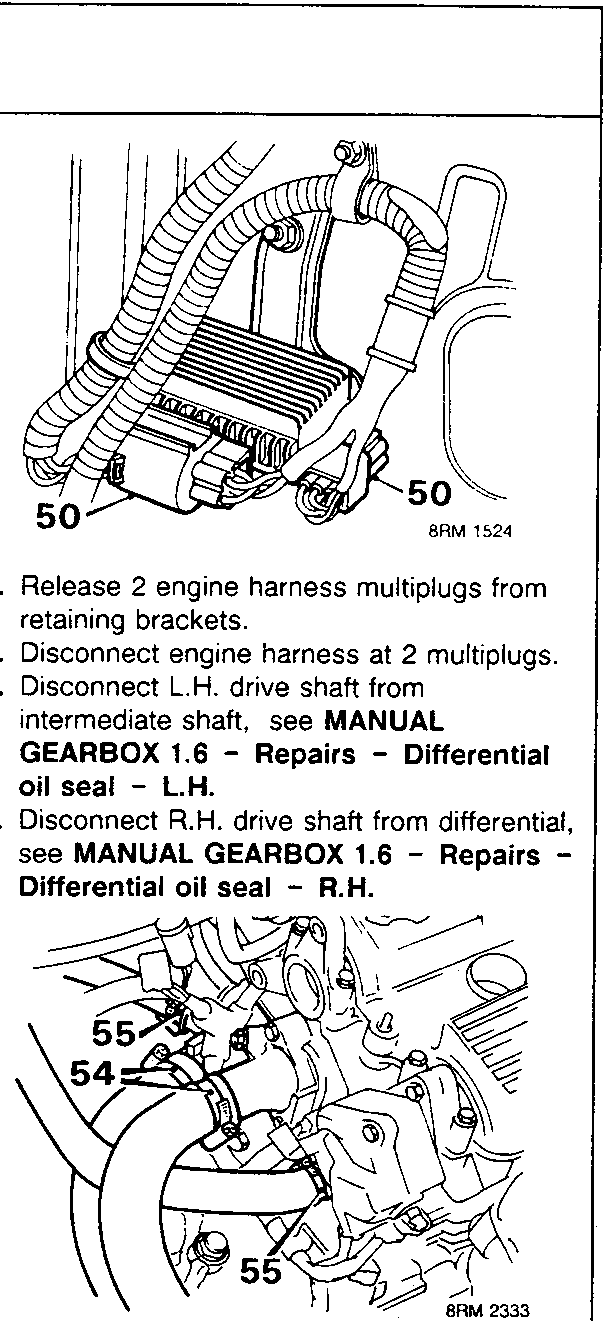

Diagram showing engine harness multiplugs being released from retaining brackets
  1. Release 2 engine harness multiplugs from retaining brackets.
  2. Disconnect engine harness at 2 multiplugs.
  3. Disconnect L.H. drive shaft from intermediate shaft, see MANUAL GEARBOX 1.6 – Repairs – Differential oil seal – L.H.
  4. Disconnect R.H. drive shaft from differential, see MANUAL GEARBOX 1.6 – Repairs – Differential oil seal – R.H.
Diagram showing coolant hoses, heater hoses and lifting bracket being fitted to cylinder head
  1. Slacken clips, disconnect coolant top and bottom hoses from engine.
  2. Release 2 clips, disconnect heater hoses from engine.
  3. Fit lifting bracket tool 18G 1608 to cylinder head with a 20 mm thick spacer under bracket and a 10 mm bolt, tighten to 30 Nm.
