Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual06 · Engine 1.6 D.O.H.C.
06 · Engine

Power steering

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Power steering
Engine 1.6 D.O.H.C.Power steering · page 1 of 2

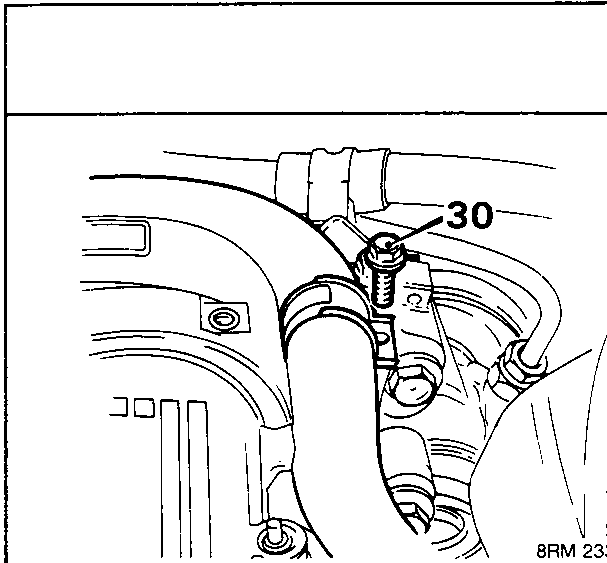

Diagram showing bolt 30 securing air conditioning hose to power steering bracket

Power steering

  1. Remove bolt, air conditioning hose to power steering bracket.

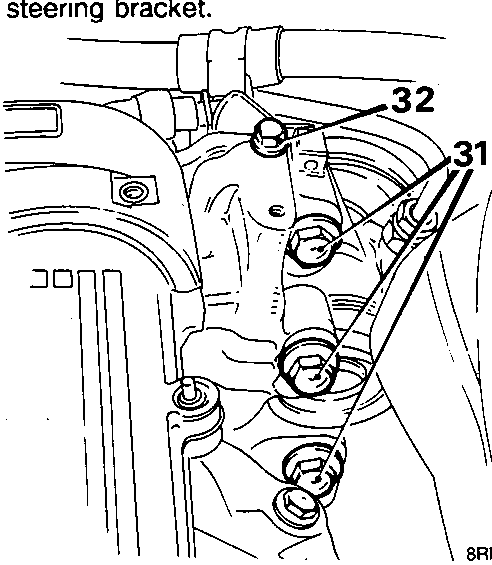

Diagram showing bolts 31 and adjustment bolt 32 on power steering pump mounting bracket
  1. Remove 3 bolts, power steering pump to mounting bracket.
  2. Remove power steering pump adjustment bolt.
  3. Release drive belt from pump pulley and move pump to one side.

CAUTION: Keep pump upright to avoid oil spillage.

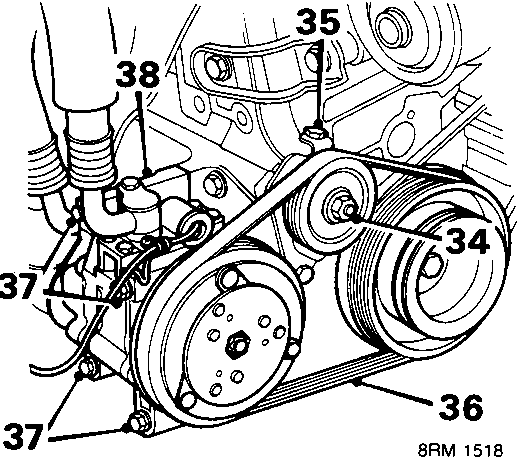

Diagram showing tensioner pulley nut 34, belt adjustment bolt 35, compressor drive belt 36, bolts 37, and compressor 38

Air conditioning

  1. Slacken tensioner pulley nut.
  2. Slacken belt adjustment bolt.
  3. Remove compressor drive belt.
  4. Remove 4 bolts, compressor to engine bracket.
  5. Retain compressor aside.

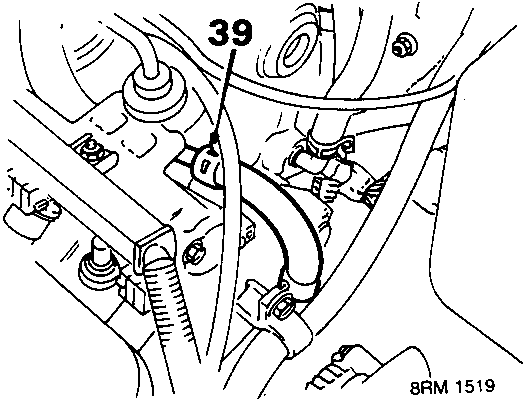

Diagram showing fuel return hose 39 disconnected from fuel rail

All models

  1. Disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

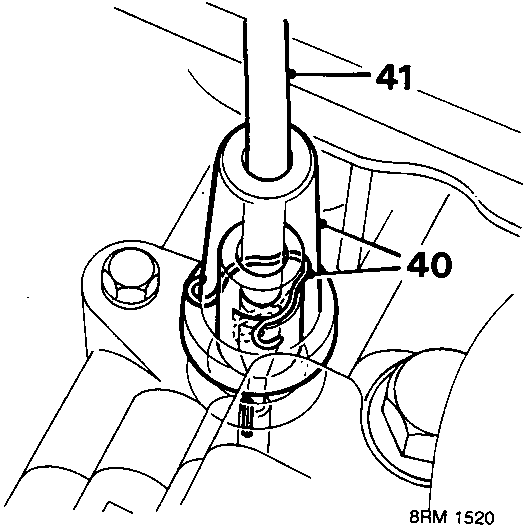

Diagram showing gaiter 40 being turned 90° to disengage clip on speedometer cable 41
  1. Turn gaiter 90° to disengage clip, speedometer cable to gearbox.

CAUTION: Speedometer pinion may drop into gearbox if gaiter is removed.
