Engine 1.6 D.O.H.C.Remove · page 1 of 2

Service Repair No. 12.37.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove bonnet, see BODY – Repairs.
  2. Remove underbelly panel, see BODY – Repairs.
  3. Drain engine oil, see MAINTENANCE

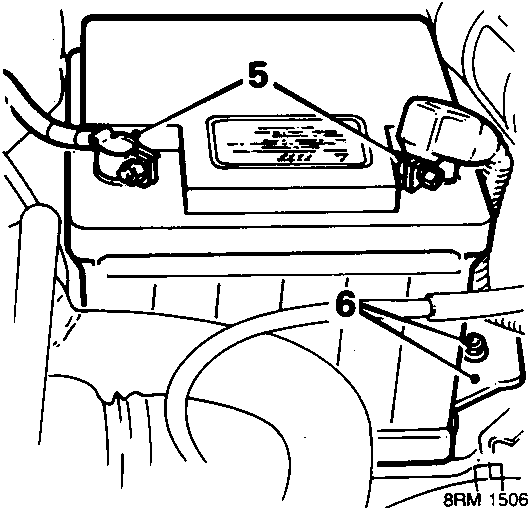

Battery and battery clamp removal diagram showing callout numbers 5 and 6
  1. Disconnect both battery leads.
  2. Remove bolt and battery clamp, lift out battery.
  3. Drain cooling system, see MAINTENANCE
  4. Drain gearbox oil, see MAINTENANCE

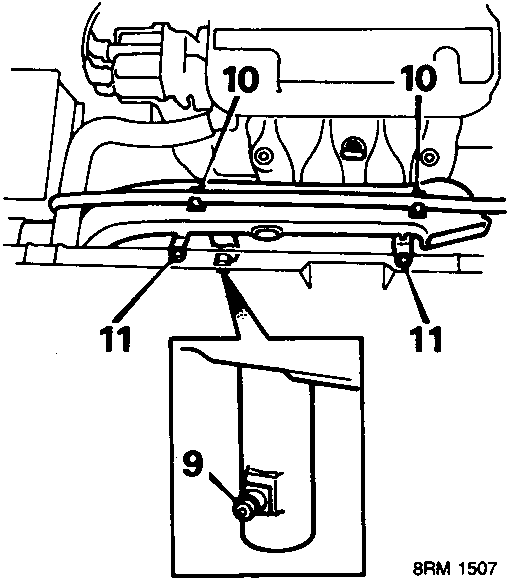

Air duct and expansion tank hose removal diagram showing callout numbers 9, 10, and 11
  1. Release clip and remove side branch from air duct.
  2. Release expansion tank hose from 2 clips.
  3. Remove 2 bolts, air duct to bonnet lock platform and remove air duct.

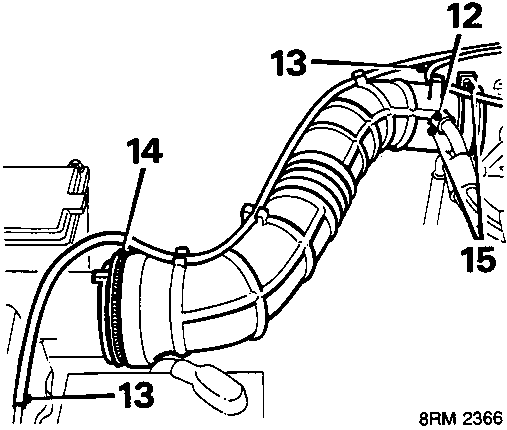

PCV hose, vacuum pipe, intake trunking, and breather pipe disconnection diagram showing callout numbers 12, 13, 14, and 15
  1. Disconnect PCV hose from air inlet trunking.
  2. Disconnect vacuum pipe from air cleaner and intake trunking clips.
  3. Disconnect intake trunking from air cleaner.
  4. Slacken hose clip, remove intake trunking from throttle housing. Release clip and disconnect breather pipe from trunking.

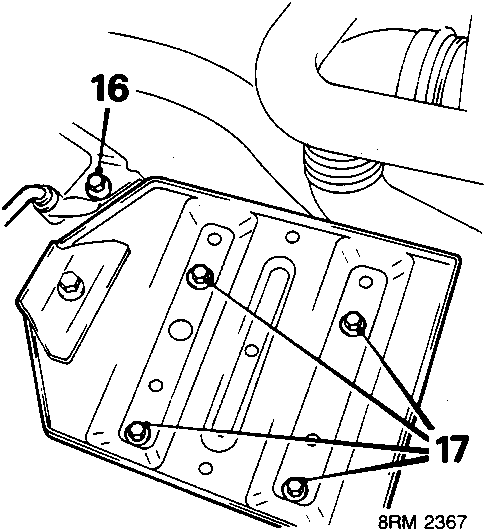

ABS pipe and battery tray removal diagram showing callout numbers 16 and 17
  1. ABS 6: Remove bolt, ABS pipe to battery tray.
  2. Remove 4 bolts, battery tray to body and remove battery tray.

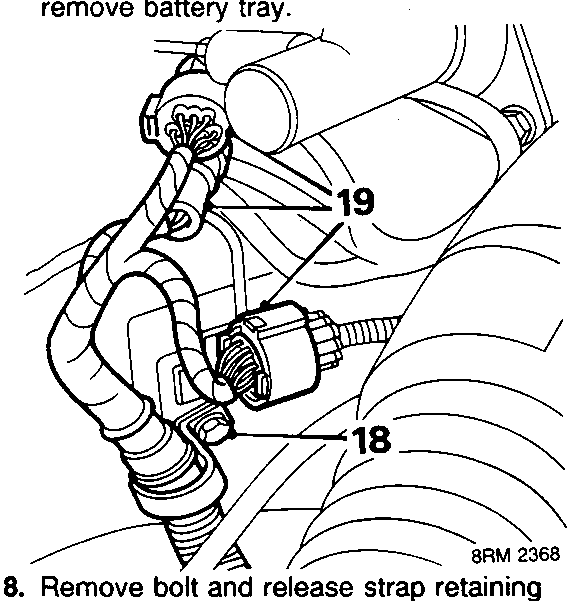

Engine harness strap and multiplug disconnection diagram showing callout numbers 18 and 19
  1. Remove bolt and release strap retaining engine harness.
  2. Disconnect 3 engine harness multiplugs.
