Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual06 · Engine 1.6 D.O.H.C.
06 · Engine

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Engine 1.6 D.O.H.C.Remove · page 1 of 2

Service Repair No. 12.37.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove bonnet, see BODY – Repairs.
  2. Remove underbelly panel, see BODY – Repairs.
  3. Drain engine oil, see MAINTENANCE

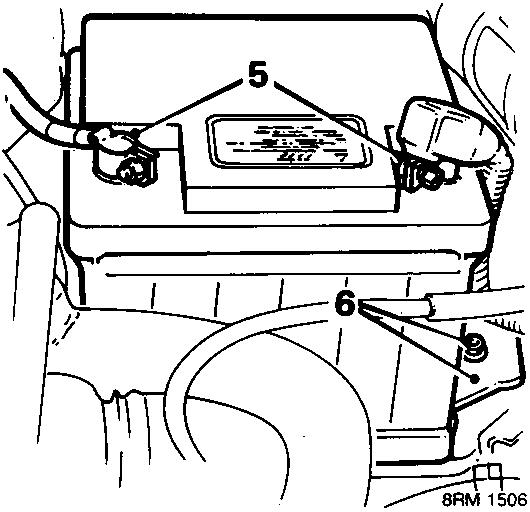

Battery and surrounding components with callout numbers 5 and 6
  1. Disconnect both battery leads.
  2. Remove battery clamp bolt; release clamp and lift out battery.
  3. Drain cooling system, see MAINTENANCE
  4. Drain gearbox oil, see MAINTENANCE

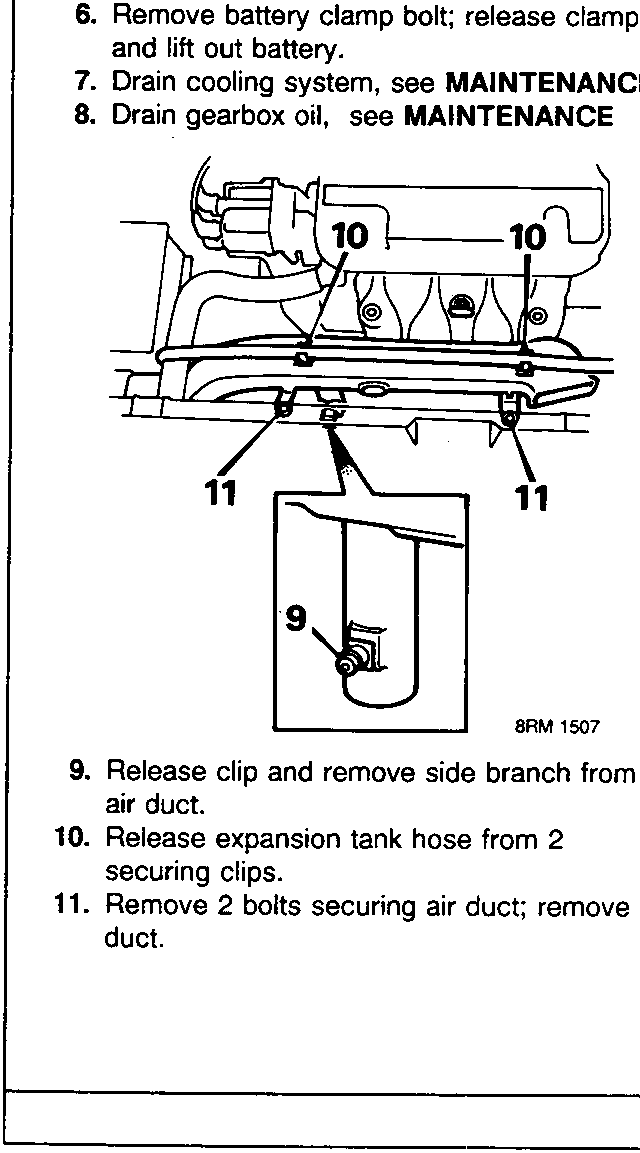

Engine air duct and expansion tank hose area with callout numbers 9, 10, and 11
  1. Release clip and remove side branch from air duct.
  2. Release expansion tank hose from 2 securing clips.
  3. Remove 2 bolts securing air duct; remove duct.

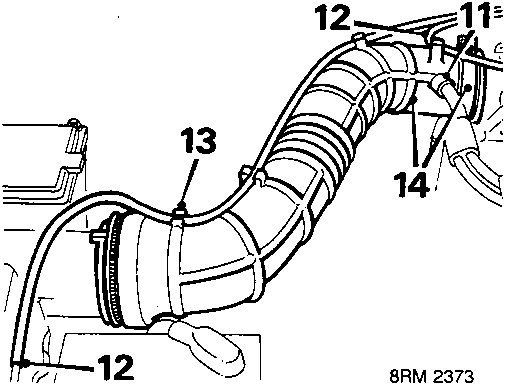

Inlet trunking and hoses with callout numbers 11, 12, 13, and 14
  1. Disconnect PCV hose from inlet trunking.
  2. Disconnect vacuum pipe from air cleaner and intake trunking clips.
  3. Disconnect intake trunking from air cleaner and release from clips.
  4. Slacken hose clip, remove intake trunking from throttle housing. Release clip and disconnect breather pipe from trunking.

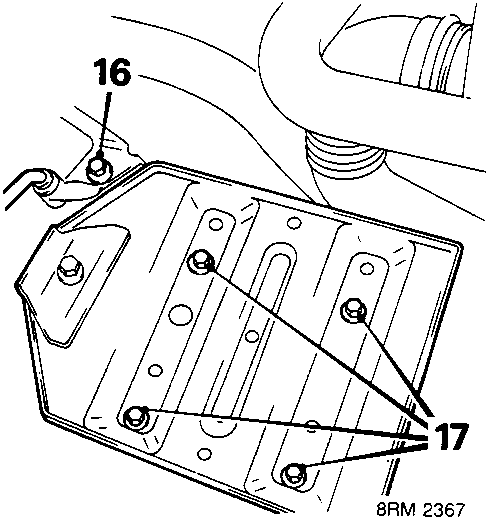

Battery tray secured to body with callout numbers 16 and 17
  1. ABS 6: Remove bolt securing ABS pipe to battery tray.
  2. Remove 4 bolts, battery tray to body and remove battery tray.

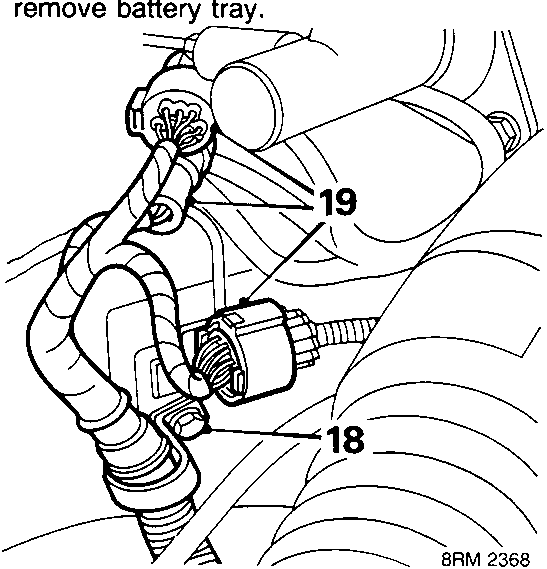

Engine harness connections with callout numbers 18 and 19
  1. Remove bolt and release strap retaining engine harness.
  2. Disconnect 3 engine harness multiplugs.
