Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual06 · Engine 1.6 D.O.H.C.
06 · Engine

Power steering

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Power steering
Engine 1.6 D.O.H.C.Power steering · page 1 of 3
Illustration of vehicle frame section with measurement markings

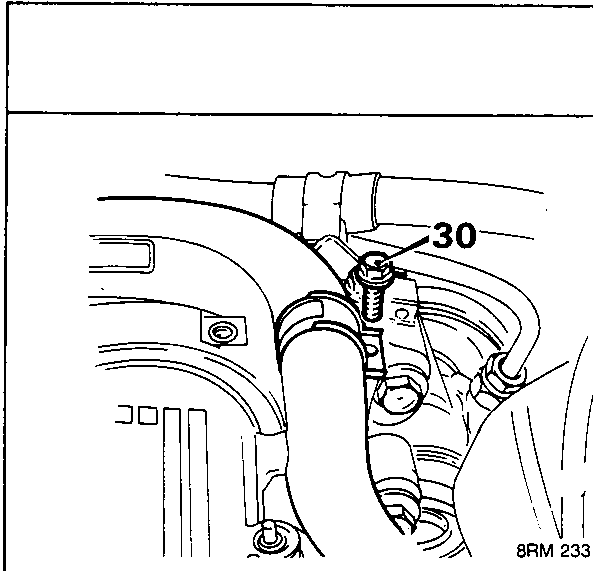

Diagram showing power steering bracket and air conditioning hose connection point

Power steering

  1. Remove bolt, air conditioning hose to power steering bracket.

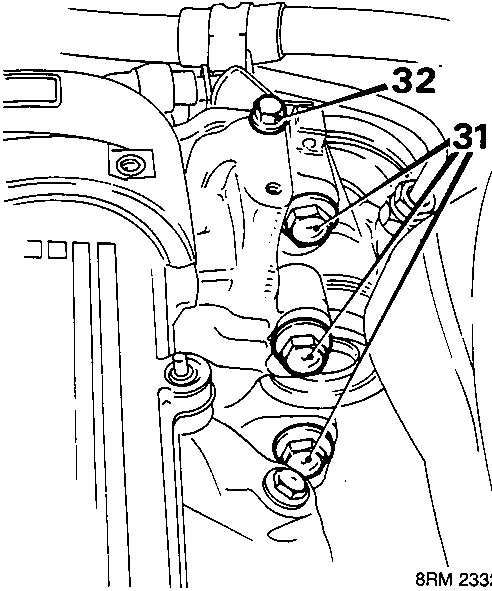

Diagram showing power steering pump mounting bolts and adjustment bolt
  1. Remove 3 bolts, power steering pump to mounting bracket.
  2. Remove power steering pump adjustment bolt.
  3. Release drive belt from power pump galley and move pump to one side.

CAUTION: Keep pump upright to avoid oil spillage.

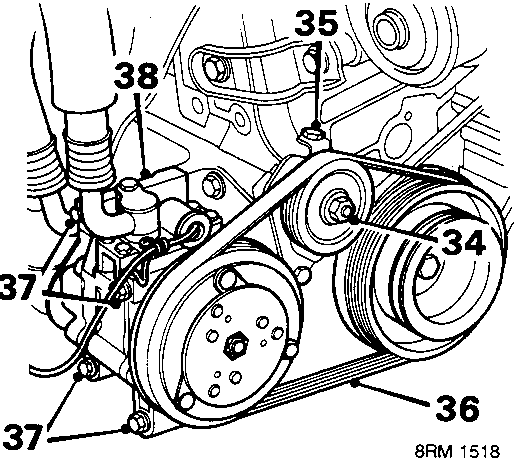

Diagram showing air conditioning compressor, tensioner pulley, and drive belt arrangement

Air conditioning

  1. Slacken tensioner pulley nut.
  2. Slacken belt adjustment bolt.
  3. Remove compressor drive belt.
  4. Remove 4 bolts, compressor to engine bracket.
  5. Retain compressor aside.

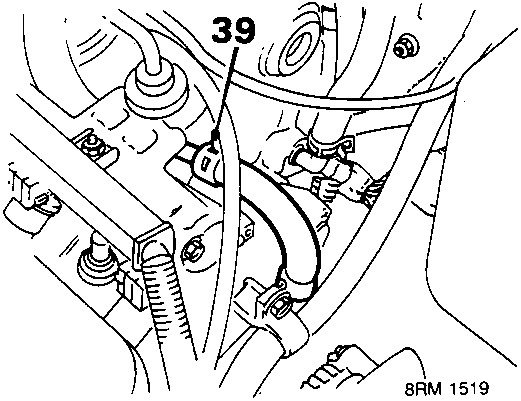

Diagram showing fuel return hose connection on fuel rail

All models

  1. Disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

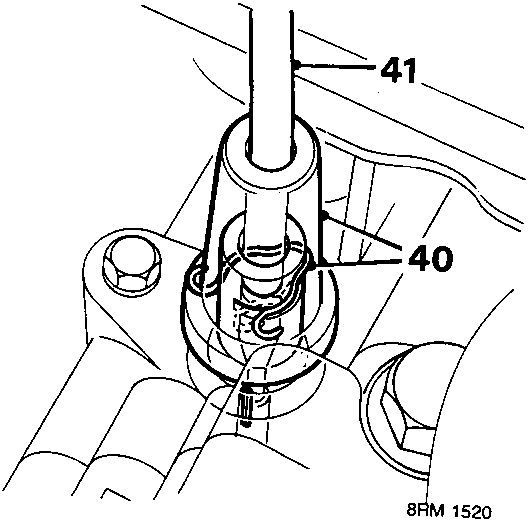

Diagram showing speedometer cable gaiter and pinion connection to gearbox
  1. Turn gaiter 90° to disengage clip, speedometer cable to gearbox.

CAUTION: Speedometer pinion may drop into gearbox if gaiter is removed.
