Engine 1.6 D.O.H.C.Power steering · page 2 of 3

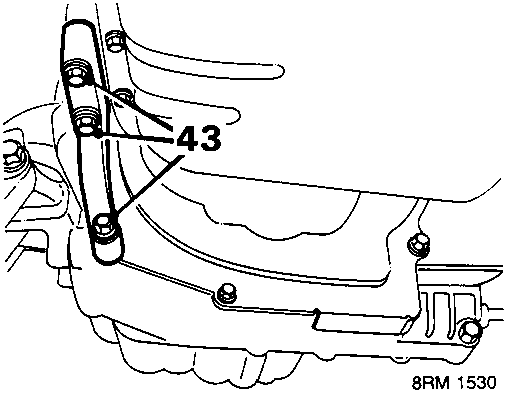

Diagram showing anti-beaming bracket (43) attached to engine and gearbox
  1. Remove 3 bolts, anti - beaming bracket to engine and gearbox. Collect anti - beaming bracket.

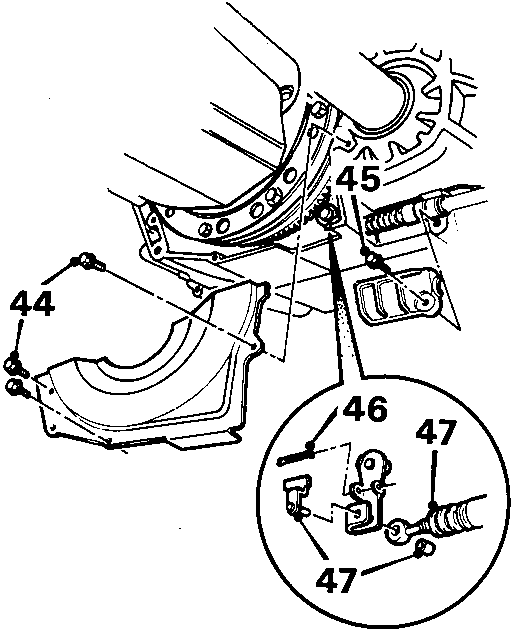

Diagram showing drive plate cover (44), selector cable holder (45), control pin (46) and rollers (47) near the gearbox
  1. Remove 3 bolts, drive plate cover to torque converter housing. Collect drive plate cover
  2. Remove bolt, selector cable holder. Release cable from holder.
  3. Remove split pin securing selector cable control pin.
  4. Remove control pin and rollers; withdraw selector cable from gearbox.

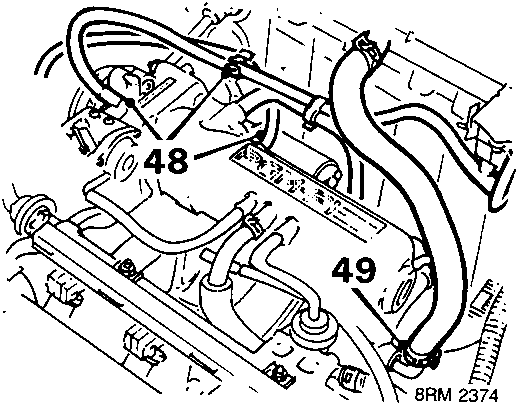

Diagram showing air conditioning pipe (48) and brake servo vacuum hose (49) on the engine
  1. Air conditioning: Release air conditioning pipe from engine clip.
  2. Disconnect brake servo vacuum hose from pipe.

CAUTION: Plug the connections.

  1. Disconnect 2 vacuum pipes from inlet manifold and clip.

CAUTION: Plug the connections.

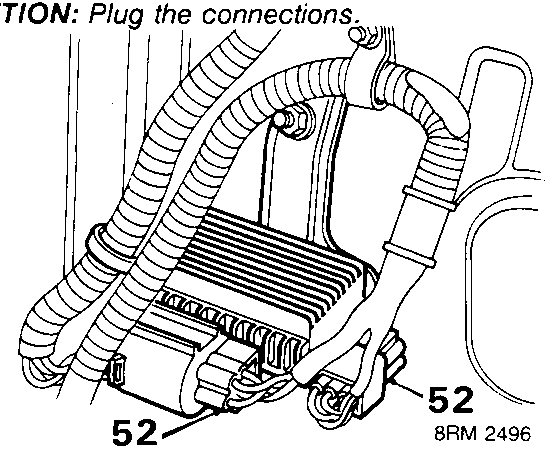

Diagram showing engine harness multiplugs (52) and retaining brackets
  1. Release 2 engine harness multiplugs from retaining brackets.
  2. Disconnect engine harness at 2 multiplugs.
  3. Release L.H. drive shaft from intermediate shaft see AUTOMATIC GEARBOX 1.6 – Repairs – Differential oil seal – L.H.
  4. Release R.H. drive shaft from differential see AUTOMATIC GEARBOX 1.6 – Repairs – Differential oil seal – R.H.
