Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual06 · Engine 1.6 D.O.H.C.
06 · Engine

Power steering (page 3 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 1.6 D.O.H.C.Power steering · page 3 of 3

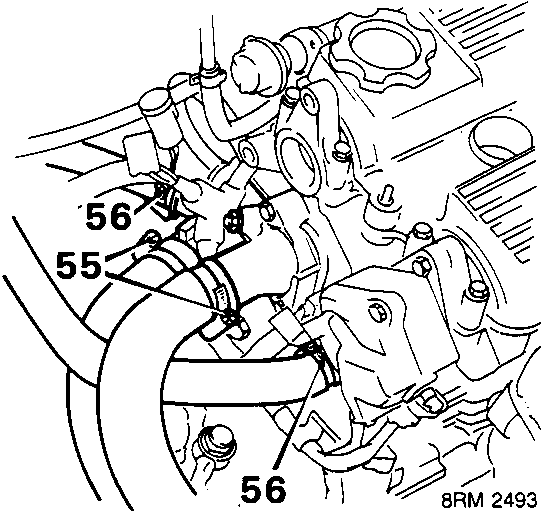

Diagram showing coolant hoses and clips numbered 55 and 56 on the engine
  1. Slacken clips, disconnect coolant top and bottom hoses from engine.
  2. Release 2 clips, disconnect heater hoses from engine.

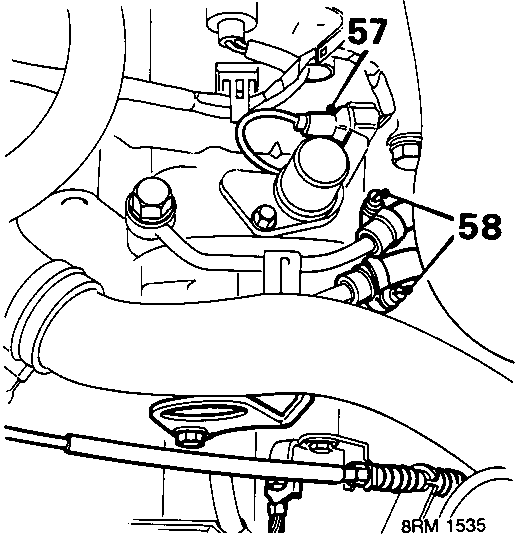

Diagram showing lock-up control solenoid valve multiplug 57 and oil cooler hoses 58
  1. Disconnect lock – up control solenoid valve multiplug.
  2. Slacken 2 clips, disconnect oil cooler hoses from pipes.

CAUTION: Plug the connections.

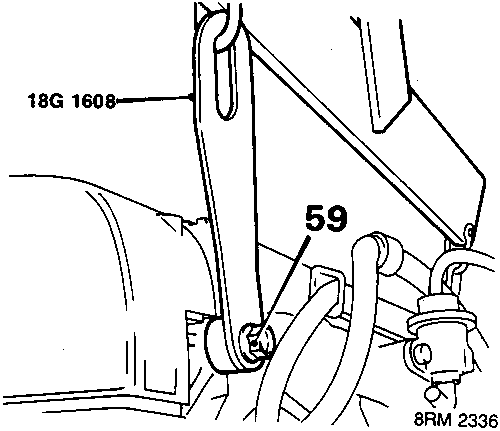

Diagram showing lifting bracket tool 18G 1608 fitted to cylinder head with spacer and bolt 59
  1. Fit lifting bracket tool 18G 1608 to cylinder head with a 20 mm thick spacer under bracket and a 10 mm bolt, tighten bolt to 30 Nm.

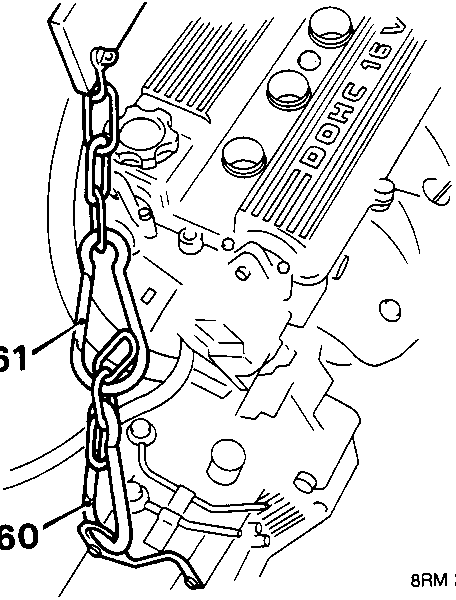

Diagram showing lifting chains 60 and 61 attached to engine lift tilt adapter and gearbox lift point
  1. Disconnect one lifting chain from engine lift tilt adapter, tool 18G 1598, and attach to lift point on gearbox.
  2. Connect both lifting chains together.
