Engine 1.6 D.O.H.C.Remove · page 2 of 2

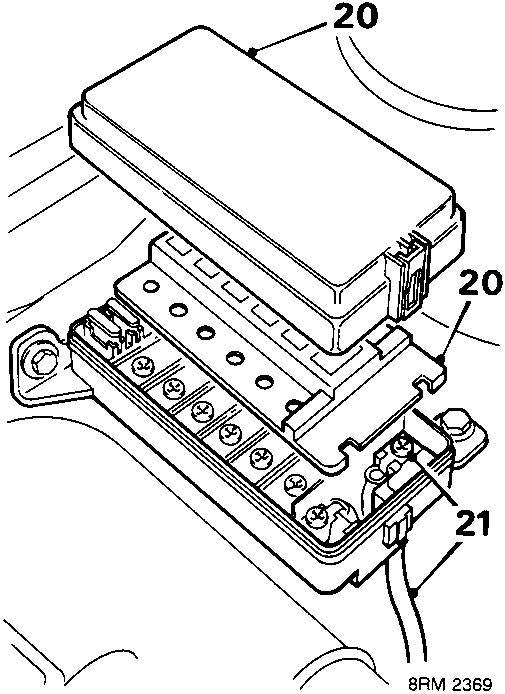

Diagram showing fusebox cover and fuse cover plate labeled 20, and screw with battery lead labeled 21
  1. Remove fusebox cover and fuse cover plate.
  2. Remove screw, battery lead to fusebox and release lead. Refit screw.
  3. Remove starter motor see ELECTRICAL – Repairs.

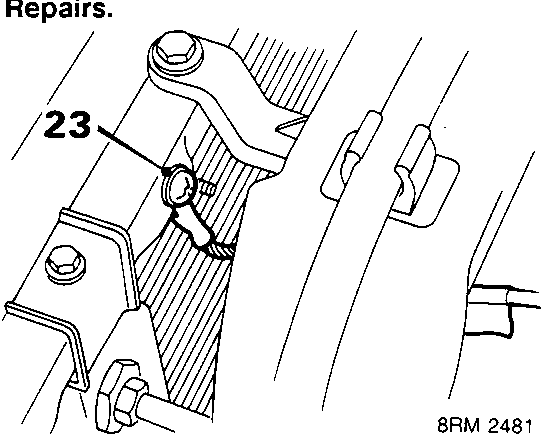

Diagram showing bolt and engine earth lead to bonnet lock platform labeled 23
  1. Remove bolt, engine earth lead to bonnet lock platform.

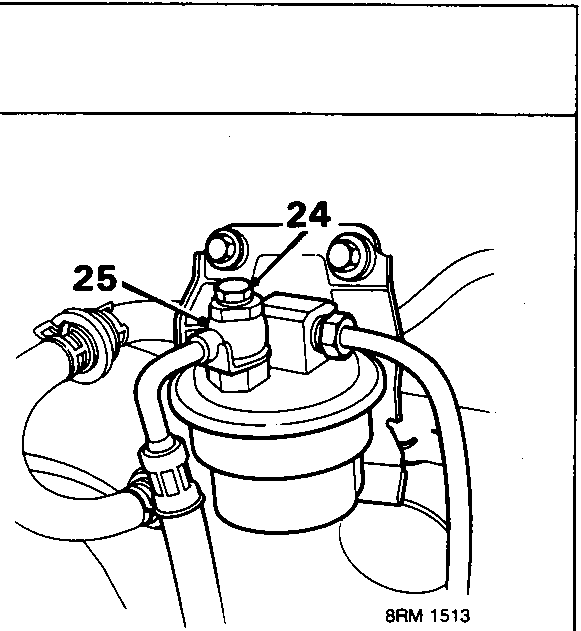

Diagram showing sealing bolt labeled 24, banjo bolt labeled 25, and fuel outlet pipe connections
  1. Position absorbent cloth around sealing bolt. Slacken bolt to relieve fuel pressure. Retighten bolt to 12 Nm.
  2. Unscrew banjo bolt, disconnect fuel outlet pipe from filter and collect 2 sealing washers.

CAUTION: Plug the connections.

  1. Remove distributor see ENGINE MANAGEMENT SYSTEM – PGM – Fi – Repairs.

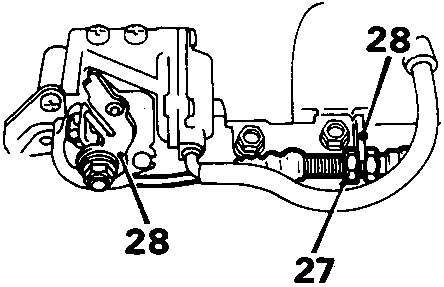

Diagram showing throttle cable lock nut labeled 27 and throttle cable disconnected from bracket and linkage labeled 28
  1. Slacken throttle cable lock nut.
  2. Disconnect throttle cable from bracket and throttle linkage.

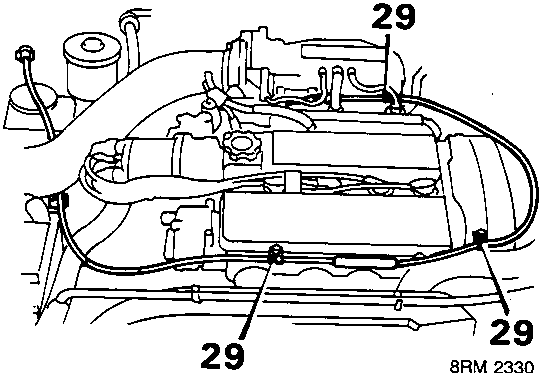

Diagram showing throttle cable released from 3 retaining clips labeled 29
  1. Release throttle cable from 3 retaining clips.
