Engine 1.6 D.O.H.C.Remove · page 2 of 2

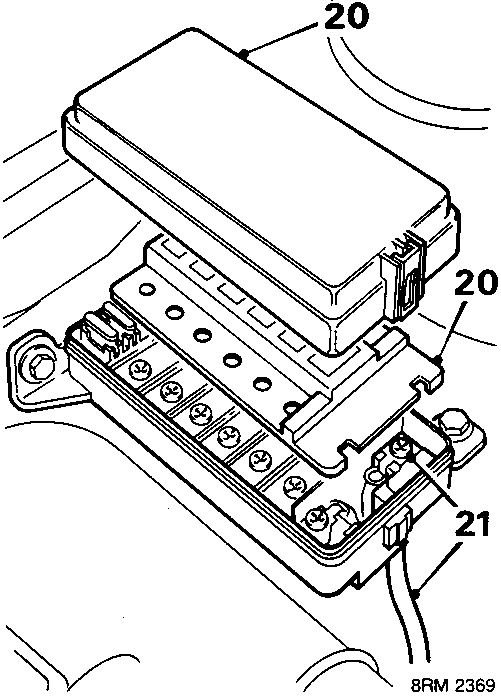

Diagram showing fusebox cover, fuse cover plate, screw and battery lead to fusebox with callout numbers 20 and 21
  1. Remove fusebox cover and fuse cover plate.
  2. Remove screw, battery lead to fusebox and release lead. Refit screw.

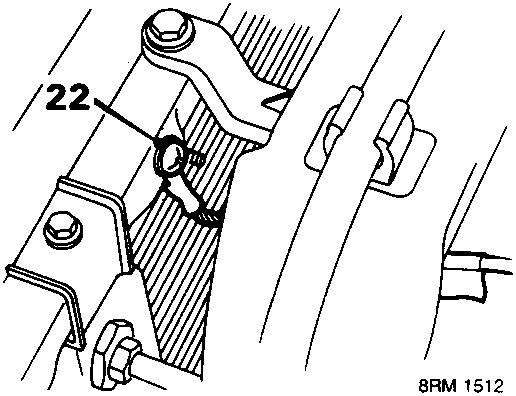

Diagram showing bolt and engine earth lead to bonnet lock platform with callout number 22
  1. Remove bolt, engine earth lead to bonnet lock platform.
  2. Remove starter motor, see ELECTRICAL – Repairs.

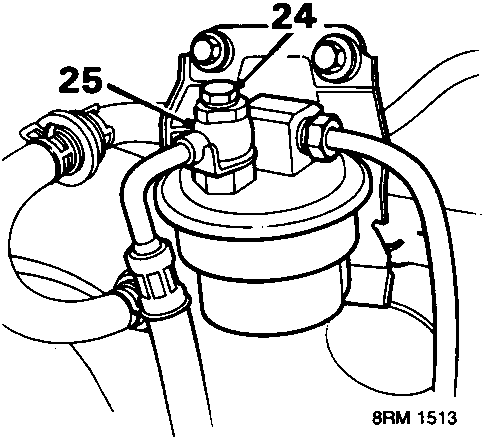

Diagram showing sealing bolt, banjo bolt, fuel outlet pipe and filter with callout numbers 24 and 25
  1. Position absorbent cloth around sealing bolt. Slacken bolt to relieve fuel pressure. Retighten bolt to 12 Nm.
  2. Unscrew banjo bolt, disconnect fuel outlet pipe from filter and collect 2 sealing washers.

CAUTION: Plug the connections.

  1. Remove distributor, see ENGINE MANAGEMENT SYSTEM PGM – Fi – Repairs.

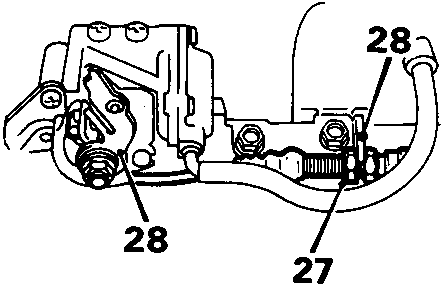

Diagram showing throttle cable locknut and bracket with callout numbers 27 and 28
  1. Slacken throttle cable locknut.
  2. Release throttle cable from bracket and throttle linkage.

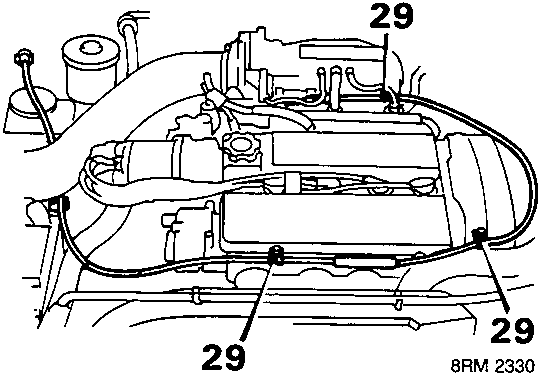

Diagram showing throttle cable retaining clips with callout number 29
  1. Release throttle cable from 3 retaining clips.
