Engine 2.0 T16Inlet camshaft rear oil seal
  1. Remove tool 18G 1523 from flywheel.
  2. Fit timing belt centre cover and tighten bolts to 5 Nm.
  3. Lower engine R.H. side to align mounting.
  4. Fit engine mounting nut and tighten to 83 Nm.
  5. Fit timing belt upper cover and tighten bolts to 5 Nm.
  6. Fit R.H. splash shield and tighten bolts.
  7. Remove stand(s) and lower vehicle.
  8. Connect battery earth lead.

INLET CAMSHAFT REAR OIL SEAL

Service Repair No. 12.13.10

Remove

  1. Disconnect battery earth lead.

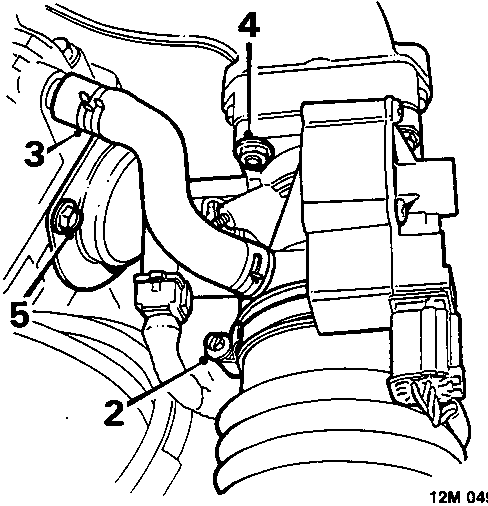

Diagram showing air intake hose, breather hose, throttle housing, and camshaft rear oil seal cover plate with callout numbers 2, 3, 4, and 5.
  1. Slacken clips securing air intake hose, remove hose.
  2. Release clip and disconnect breather hose from inlet camshaft cover.
  3. Remove 4 nuts securing throttle housing to rubber mounting, move throttle housing aside.
  4. Naturally aspirated models: Remove 2 bolts securing camshaft rear oil seal cover plate, remove cover plate.

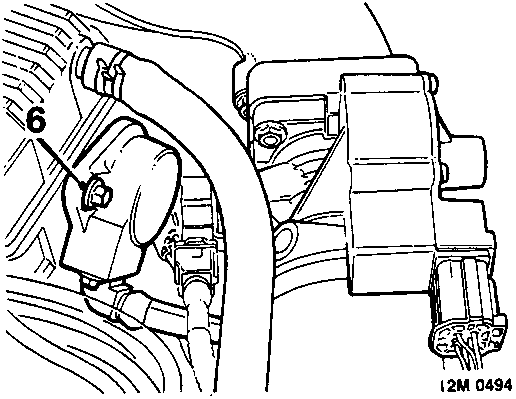

Diagram of turbo model area showing camshaft sensor housing secured by bolts, with callout number 6.
  1. Turbo models: Remove 2 bolts securing camshaft sensor housing, move housing aside.

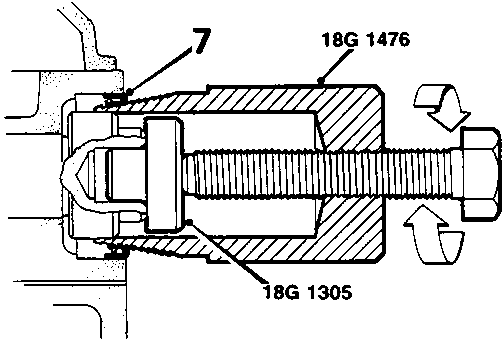

Diagram showing tools 18G 1305 and 18G 1476 being used to remove an oil seal, with callout number 7.
  1. Remove oil seal, using tools 18G 1305 and 18G 1476.

Refit

  1. Clean camshaft and oil seal housing.

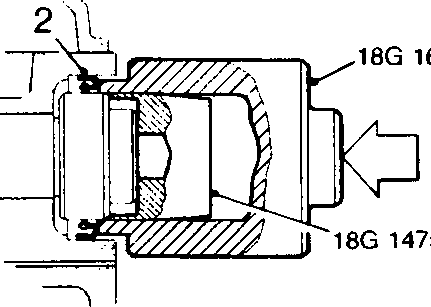

Diagram showing tools 18G 1475 and 18G 1667 being used to fit a new oil seal.
  1. Fit new seal, using tools 18G 1475 and 18G 1667.
  2. Naturally aspirated models: Fit rear oil seal cover plate and tighten bolts to 10 Nm.
  3. Turbo models: Fit camshaft sensor housing and tighten bolts to 10 Nm.
  4. Fit throttle body and tighten nuts to 8 Nm.
  5. Connect breather hose to inlet camshaft cover and secure with clip.
  6. Fit air intake hose and tighten clips.
  7. Connect battery earth lead.
