Engine 2.0 T16Remove · page 1 of 2

Service Repair No. 12.30.26

Remove

  1. Remove camshaft cover gasket.
  2. Remove camshaft, see 'T' Series Engine Overhaul Manual
  3. Remove spark plug, see MAINTENANCE.

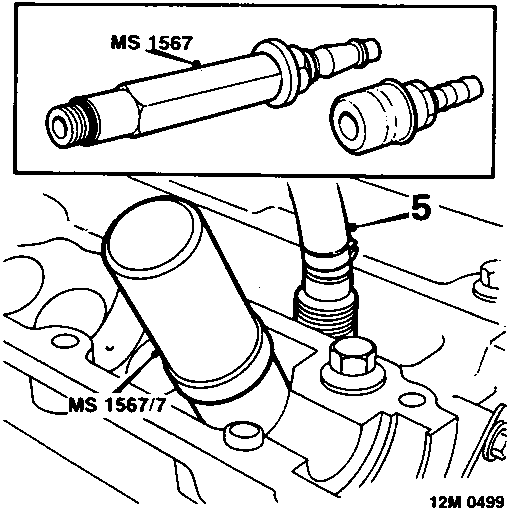

Diagram showing air line adapter MS 1567 and tool MS 1567/7 positioned on the engine near callout 5
  1. Screw air line adapter MS 1567 into spark plug hole.
  2. Connect an airline to the adapter.
  3. Remove hydraulic tappet from valve.
  4. Position tool MS 1567/7 to valve spring cap.

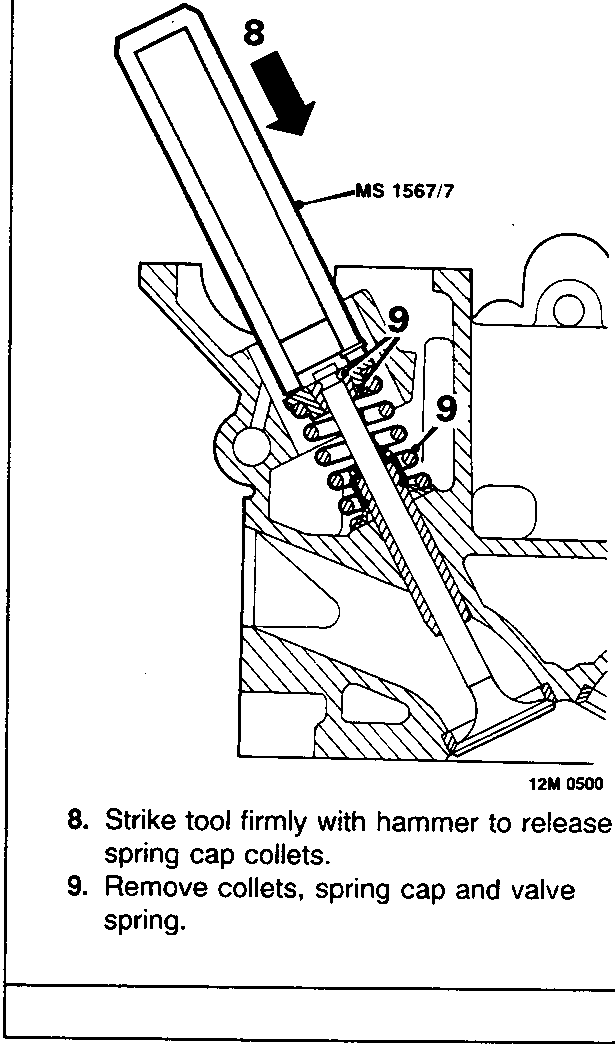

Diagram showing tool MS 1567/7 being struck by a hammer (callout 8) to release spring cap collets (callout 9)
  1. Strike tool firmly with hammer to release spring cap collets.
  2. Remove collets, spring cap and valve spring.

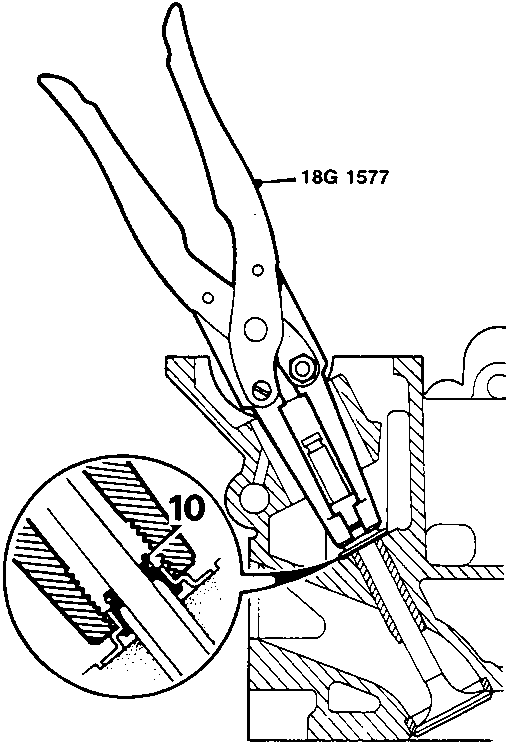

Diagram showing tool 18G 1577 being used to remove valve stem oil seal (callout 10)
  1. Use tool 18G 1577 to remove valve stem oil seal.

Refit

  1. Lubricate new valve stem oil seal with engine oil.
  2. Use tool 18G 1577 to fit oil seal to valve stem.
