Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual07 · Engine 2.0 T16
07 · Engine

Remove (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 2.0 T16Remove · page 2 of 2

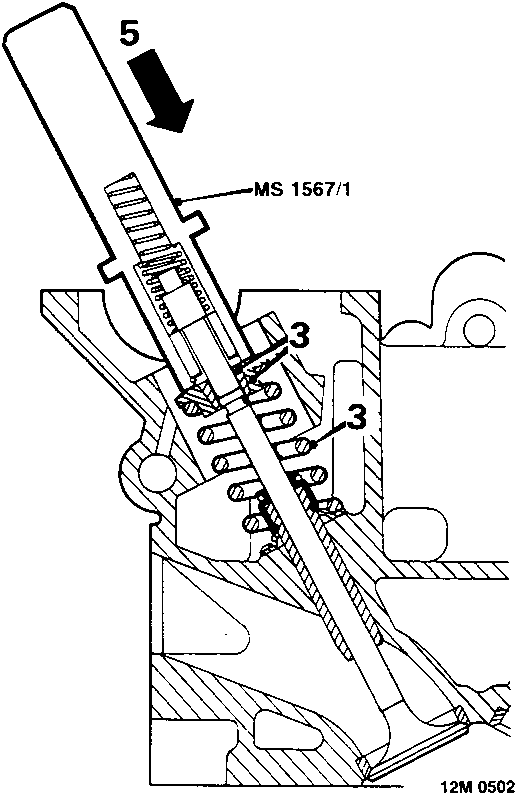

Diagram showing tool MS 1567/1 being struck with a hammer (5) to seat valve spring cap and collets (3) on a cylinder head, reference 12M.0502
  1. Position valve spring, spring cap and collets.
  2. Position tool MS 1567/1 to valve spring cap.
  3. Strike tool with hammer to secure spring cap to valve with collets. Ensure spring cap collets are correctly seated.
  4. Fit hydraulic tappet to valve.
  5. Disconnect air line, and remove adapter from cylinder head.
  6. Fit spark plug, see MAINTENANCE.
  7. Fit camshaft, see 'T' Series Engine Overhaul Manual.
  8. Fit camshaft cover and gasket.
