Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual07 · Engine 2.0 T16
07 · Engine

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Engine 2.0 T16Remove

Service Repair No. 12.21.14

Remove

  1. Disconnect battery earth lead.
  2. Remove camshaft timing belt, see MAINTENANCE.
Rectangular frame with horizontal dividing line

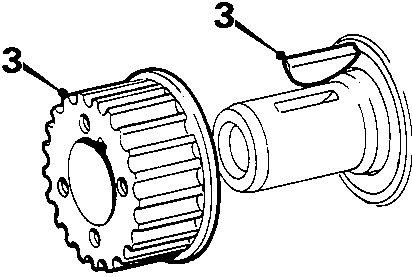

Timing gear and drive key on crankshaft end

12M 0511

  1. Slide timing gear off crankshaft and remove drive key.

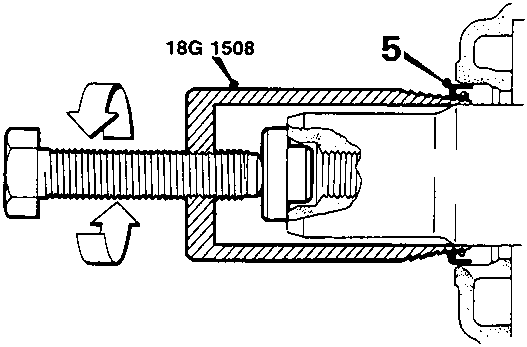

Tool 18G 1508 being screwed into crankshaft front oil seal to remove it

12M 0512

  1. Screw tool 18G 1508 into crankshaft front oil seal.
  2. Remove oil seal by tightening centre bolt of tool.

Refit

  1. Clean seal recess in oil pump and sealing surface on crankshaft.

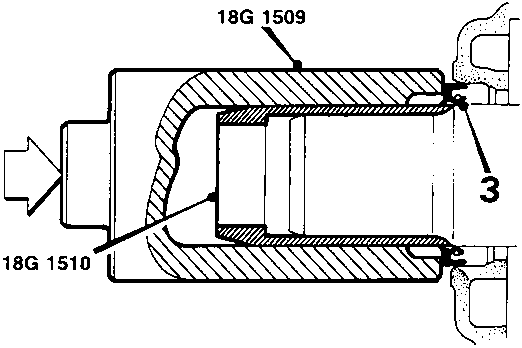

Tool 18G 1510 guiding new seal onto crankshaft journal with tool 18G 1509

12M 0513

  1. Fit guide tool 18G 1510 onto crankshaft and lubricate crankshaft journal and guide with engine oil.
  2. Position new seal on journal and against housing, drift into place using tool 18G 1509.
  3. Fit drive key to crankshaft and slide timing gear onto crankshaft.
  4. Fit camshaft timing belt – see MAINTENANCE.
  5. Connect battery earth lead.
