Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual07 · Engine 2.0 T16
07 · Engine

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Engine 2.0 T16Remove

Service Repair No. 12.13.08

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs – MPi.

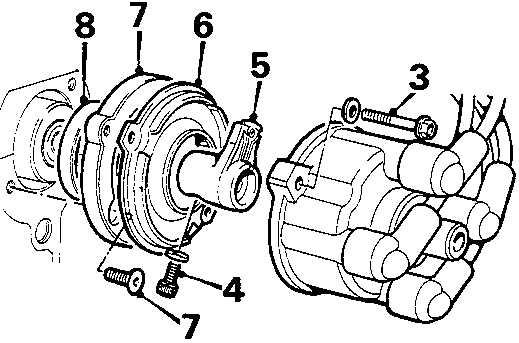

Diagram showing removal of distributor cap and related components with callout numbers 3, 4, 5, 6, 7, 8

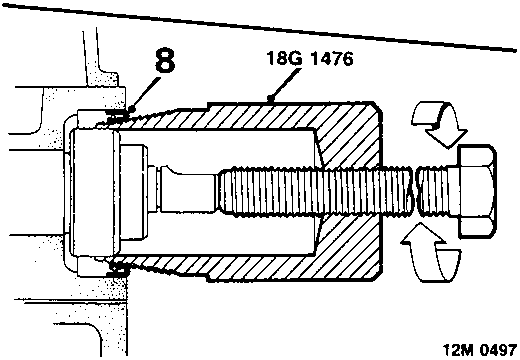

Diagram showing tool 18G 1476 being used to remove oil seal with callout number 8
  1. Remove 2 captive screws securing distributor cap, move cap aside.
  2. Remove and discard bolt securing rotor arm.
  3. Remove rotor arm.
  4. Remove distributor cap flash shield.
  5. Remove 2 screws and remove distributor cap adapter plate.
  6. Remove oil seal, using tool 18G 1476.

Refit

  1. Clean oil seal housing.

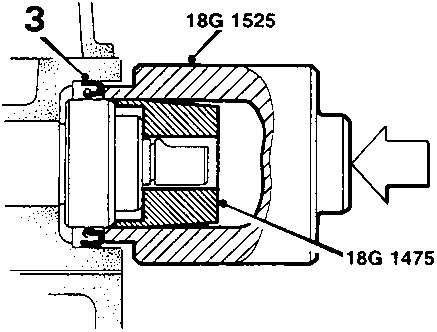

Diagram showing tool 18G 1525 fitting new seal on camshaft using tool 18G 1475
  1. Position tool 18G 1475 on camshaft.
  2. Fit new seal, using tool 18G 1525.
  3. Remove tools, ensure seal lip is not distorted.
  4. Clean mating faces of distributor cap, adapter plate and flash shield.
  5. Fit adapter plate, apply sealer to screws, fit and tighten screws.
  6. Fit rotor arm, secure with new 'Patchlock' bolt tightened to 8 Nm.
  7. Fit distributor cap flash shield.
  8. Fit distributor cap, tighten screws.
  9. Fit air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs – MPi.
  10. Connect battery earth lead.
