Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual09 · Modular engine management system - SPi
09 · Engine

Engine management e.c.u.

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Engine management e.c.u.
Modular engine management system - SPiEngine management e.c.u.

ENGINE MANAGEMENT E.C.U.

Service Repair No. 18.30.01

Remove

  1. Disconnect battery earth lead.

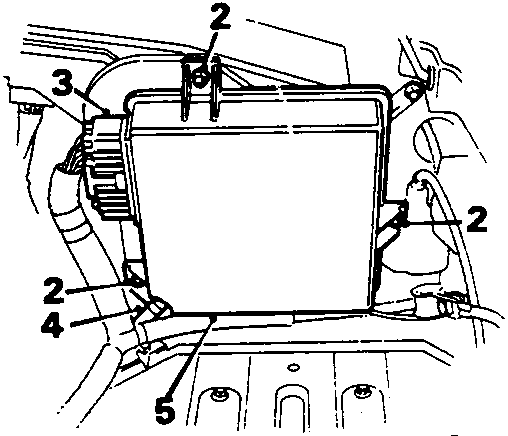

Diagram showing the location of the E.C.U. under the bonnet, with callout numbers 2, 3, 4, and 5 indicating nuts, connectors, and the unit itself.
  1. Remove 3 nuts securing E.C.U.
  2. Disconnect multiplug from E.C.U.
  3. Disconnect vacuum pipe from E.C.U.
  4. Remove E.C.U.

Refit

  1. Position E.C.U. and connect multiplug.
  2. Connect vacuum pipe.
  3. Position E.C.U. to mounting plate, fit and tighten nuts to 9 Nm.
  4. Connect battery earth lead.

CHARCOAL CANISTER

Service Repair No. 17.15.13

Remove

  1. Disconnect battery earth lead.

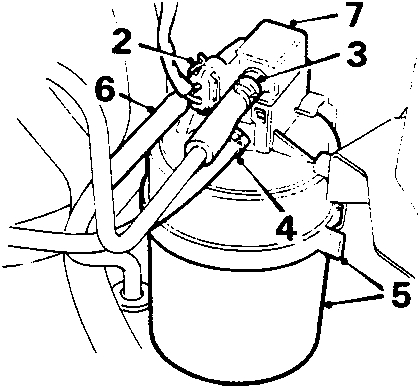

Diagram of the charcoal canister assembly showing connections for hoses and the purge valve, with callout numbers 2 through 7.
  1. Disconnect multiplug from purge valve.
  2. Release clip and disconnect hose from purge valve.
  3. Release clip and disconnect fuel tank hose from charcoal canister.
  4. Release securing strap and remove charcoal canister.
  5. Disconnect vent hose from charcoal canister.
  6. Release and remove purge valve.

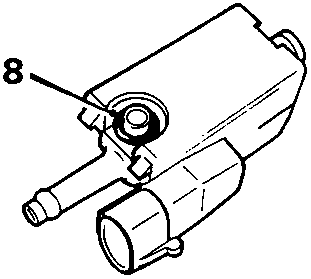

Close-up diagram of the purge valve with callout number 8 pointing to the 'O' ring seal.
  1. Remove and discard 'O' ring.

Refit

  1. Fit new 'O' ring to purge valve.
  2. Fit purge valve to charcoal canister.
  3. Fit vent hose to charcoal canister.
  4. Fit charcoal canister and secure strap.
  5. Connect fuel tank hose to charcoal canister and secure clip.
  6. Connect hose to purge valve and secure clip.
  7. Connect multiplug to purge valve.
  8. Connect battery earth lead.
