Modular engine management system - SPiRefit

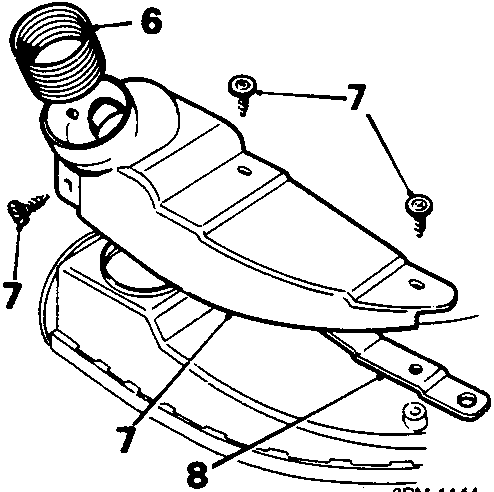

Diagram showing the hot air intake hose, adaptor, and support bracket with callout numbers 6, 7, and 8.
  1. Remove hot air intake hose from hot box.
  2. Remove 3 screws securing hot air intake adaptor and remove adaptor.
  3. Remove intake support bracket.

Refit

  1. Position intake support bracket.
  2. Position hot air intake adaptor, fit and tighten screws.
  3. Position hot air hose to hot box.
  4. Fit intake and secure clips, intake to air cleaner.
  5. Fit and tighten screw, intake support bracket to camshaft cover.
  6. Position intake hose clip.
  7. Position air intake hose to air cleaner intake.
  8. Align clip to intake hose and tighten screw.
  9. Secure rubber strap to intake.
  10. Connect vacuum hose to control valve.

RESONATOR

Service Repair No. 17.30.33

Remove

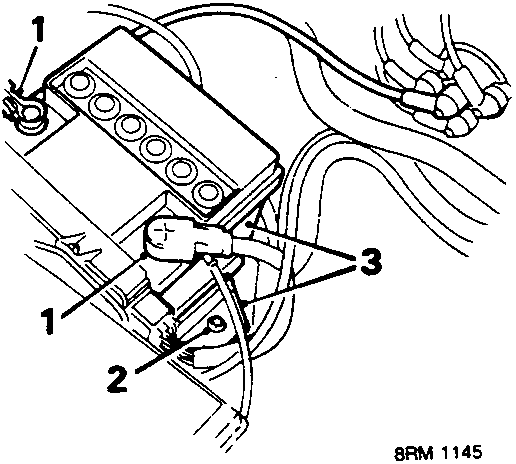

Diagram showing battery location with callout numbers 1, 2, and 3 indicating battery leads and clamp bolt.
  1. Disconnect both battery leads.
  2. Remove clamp bolt.
  3. Remove battery clamp and lift out battery.

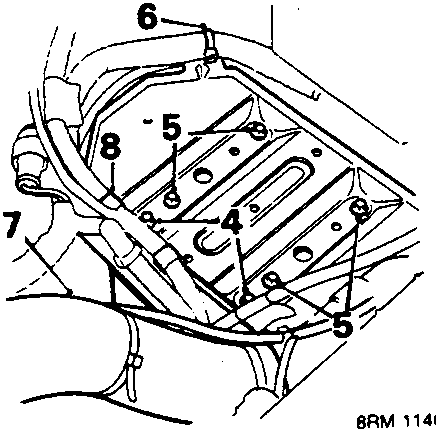

Diagram showing resonator and battery tray area with callout numbers 4 through 8 indicating bolts, wiring clips, and air intake components.
  1. Remove 2 bolts securing resonator to battery tray.
  2. Remove 4 bolts securing battery tray.
  3. Release wiring clip from battery tray and remove battery tray.
  4. Release cold air intake from resonator and intake elbow. Move intake aside.
  5. Release wiring clips on resonator bracket and remove resonator.
