Modular engine management system - SPiRemove

Service Repair No. 17.30.10

Remove

  1. Remove air cleaner assembly.

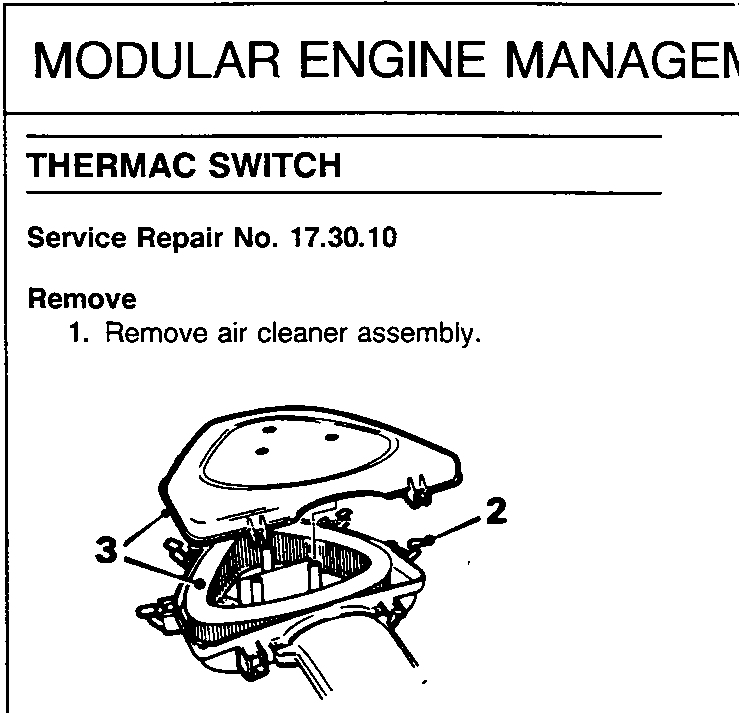

Exploded view of the air cleaner assembly showing the lid, clips, and filter element with callout numbers 2 and 3

8RM 1139

  1. Release clips securing air cleaner lid.
  2. Remove lid and filter element.

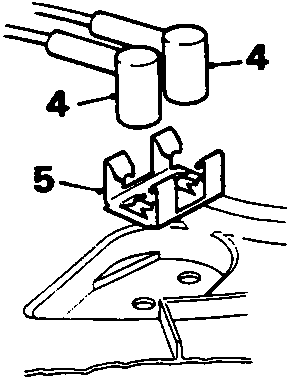

Close up of clips securing the air cleaner lid with callout number 4
Thermac switch with vacuum pipes attached, callout numbers 6 and 7

8RM 1140

  1. Remove vacuum pipes from switch.
  2. Bend up tags on switch clip and remove clip.
  3. Remove switch.
  4. Remove seal.

Refit

  1. Clean switch and mating face.
  2. Fit seal and switch and secure with clip.
  3. Fit vacuum pipes.
  4. Clean inside of air cleaner case and fit air cleaner element.
  5. Fit air cleaner lid and secure clips.
  6. Refit air cleaner assembly.

AIR TEMPERATURE CONTROL VALVE

Service Repair No. 17.30.03

Remove

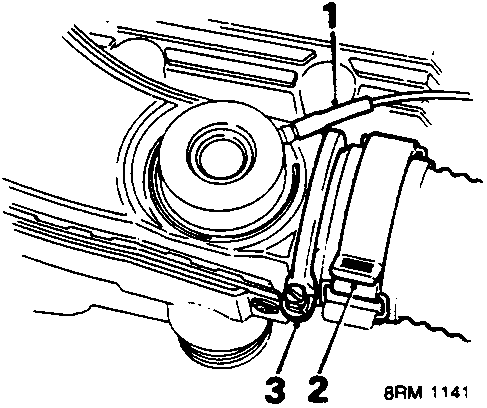

Air temperature control valve connected to intake hose with callout numbers 1, 2, and 3

8RM 1141

  1. Disconnect vacuum hose from air temperature control valve.
  2. Release rubber strap from intake hose.
  3. Remove screw securing intake hose clip and release intake hose.

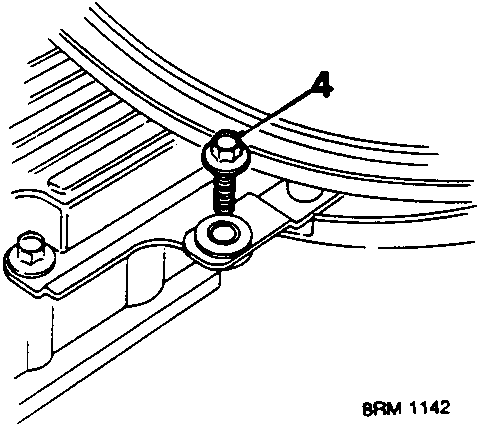

Screw securing the air cleaner intake support to the camshaft cover bracket, callout number 4

8RM 1142

  1. Remove screw securing air cleaner intake support to camshaft cover bracket.

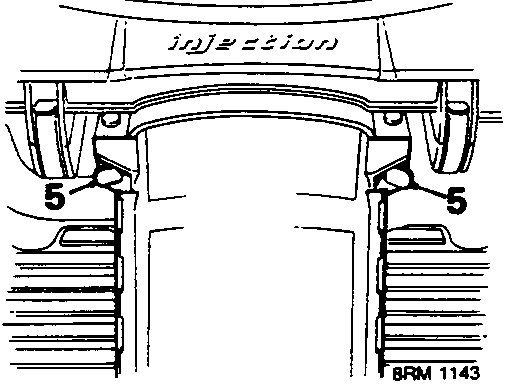

Intake manifold connection to air cleaner showing two clips labeled with callout number 5

8RM 1143

  1. Release 2 clips securing intake to air cleaner and remove intake.
