PURGE CONTROL VALVE

Service Repair No. 17.15.39

Remove

  1. Disconnect battery earth lead.

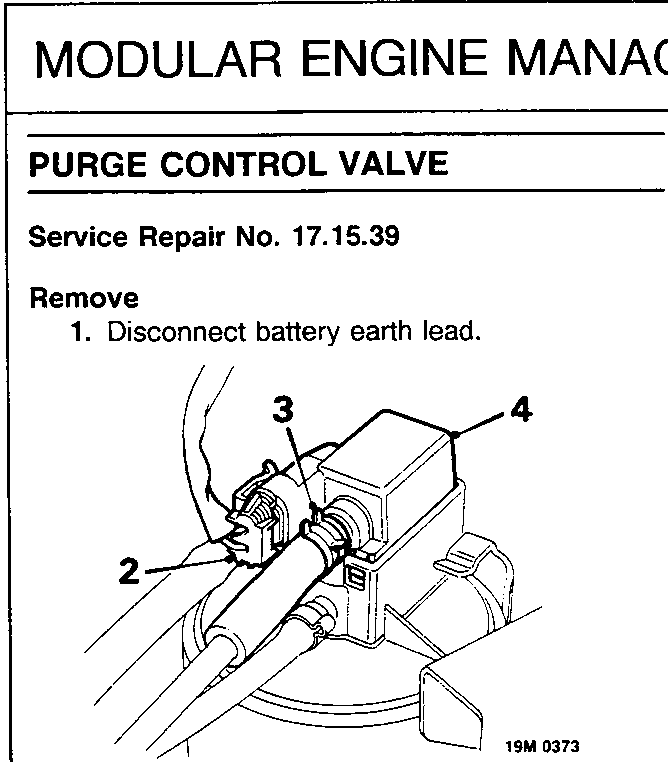

Diagram showing purge control valve assembly with callout numbers 2, 3, and 4
  1. Disconnect multiplug from purge control valve.
  2. Release clip and disconnect hose from valve.
  3. Release valve from charcoal canister.
  4. Remove valve.

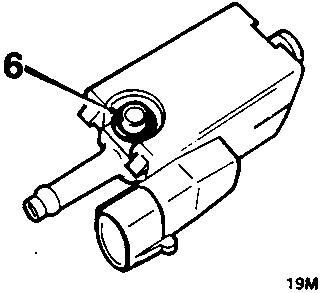

Diagram of purge control valve with callout number 6 pointing to the O ring
  1. Discard 'O' ring.

Refit

  1. Clean valve and valve location.
  2. Fit new 'O' ring to purge valve.
  3. Position and secure valve to charcoal canister.
  4. Connect hose to purge valve and secure with clip.
  5. Connect multiplug to valve.
  6. Connect battery earth lead.

OXYGEN SENSOR

Service Repair No. 19.22.16

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

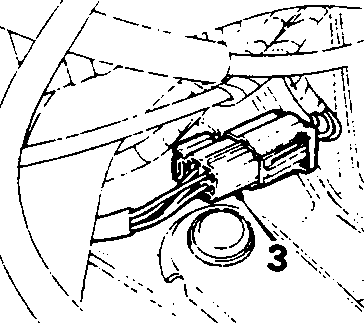

Diagram showing oxygen sensor multiplug connection with callout number 3
  1. Disconnect oxygen sensor multiplug from engine harness.

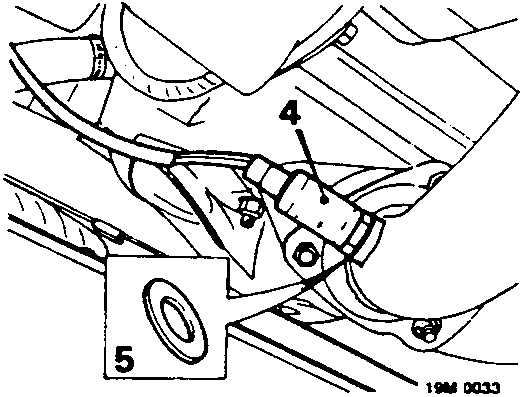

Diagram showing oxygen sensor in exhaust manifold with callout numbers 4 and 5 (sealing washer)
  1. Using 22 mm open ended spanner, unscrew oxygen sensor from exhaust manifold.

CAUTION: Do not drop or knock the oxygen sensor or touch the protective compound on the threads.

  1. Remove and discard sealing washer.

Refit

  1. Clean joint surfaces and fit new sealing washer to sensor.
  2. Screw in sensor finger tight and tighten to 55 Nm.
  3. Connect oxygen sensor multiplug to engine harness.
  4. Remove stand(s) and lower vehicle.
  5. Connect battery earth lead.
