Modular engine management system - SPiRemove

Service Repair No. 18.30.10

Remove

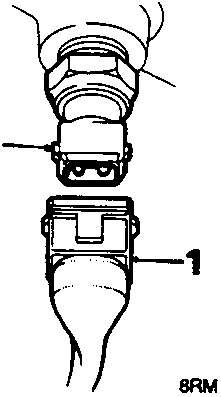

Diagram showing the coolant temperature sensor multiplug (1) being disconnected from the sensor (2).
  1. Disconnect multiplug.
  2. Release sensor from inlet manifold.

Refit

  1. Wipe sensor threads and mating face.
  2. Fit and tighten coolant temperature sensor to 15 Nm.
  3. Connect multiplug to sensor.
  4. Top up cooling system, see MAINTENANCE

CRANKSHAFT SENSOR

Service Repair No. 18.30.12

Remove

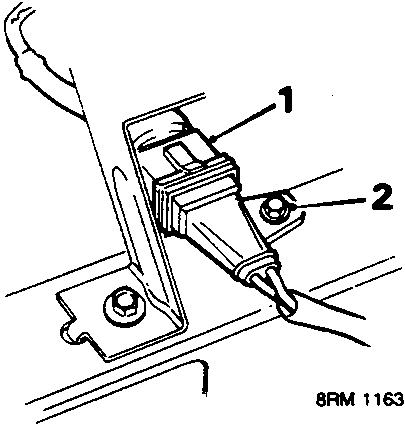

Diagram showing the crankshaft sensor multiplug (1) and its securing screw (2) on a bracket.
  1. Release sensor multiplug from harness.
  2. Release screw securing sensor multiplug to bracket.

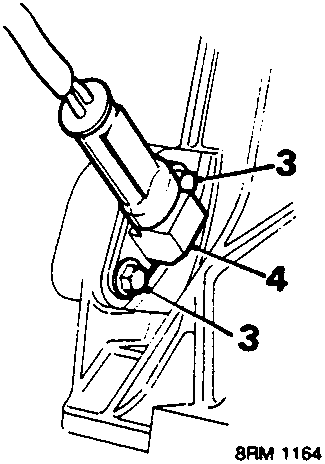

Diagram showing the crankshaft sensor secured by screws (3) to an adaptor plate (4).
  1. Release 2 screws securing sensor to adaptor plate.
  2. Remove sensor.

Refit

  1. Position sensor, fit screws and tighten to 6 Nm.
  2. Position sensor lead to bracket, fit screw and tighten to 6 Nm.
  3. Connect multiplug to harness.
