Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual09 · Modular engine management system - SPi
09 · Engine

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Modular engine management system - SPiRemove

Service Repair No. 19.20.06

Remove

R.H.D. vehicles only

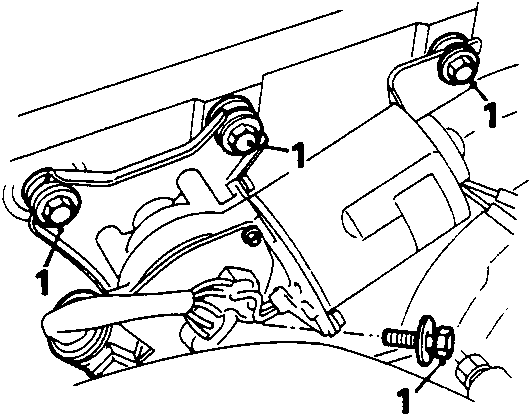

Diagram showing release of windscreen wiper motor from bulkhead, with callout number 1 pointing to securing screws and the motor mounting points.
  1. Release 4 screws securing windscreen wiper motor to bulkhead
  2. Release motor from bulkhead

All models

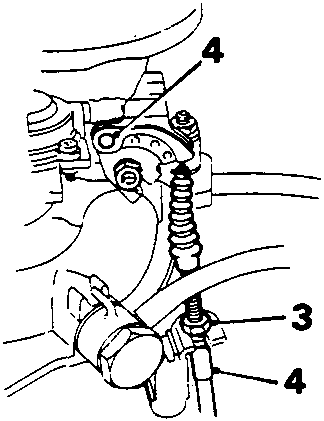

Diagram showing slackening of locknut on throttle cable at abutment bracket, with callout numbers 3 and 4 indicating the locknut and cable connection.
  1. Slacken locknut throttle cable to abutment bracket
  2. Release cable from abutment bracket and cam

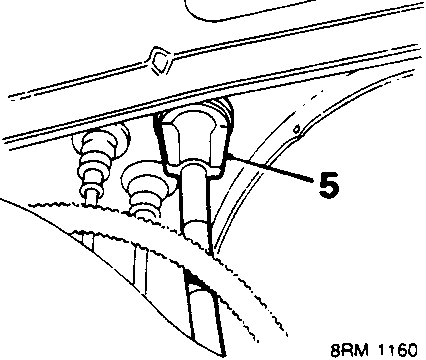

Diagram showing release of outer cable from bulkhead, with callout number 5 pointing to the cable entry point.
  1. Release outer cable from bulkhead

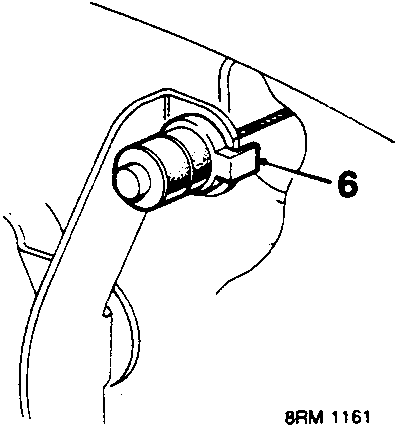

Diagram showing release of cable from throttle pedal, with callout number 6 pointing to the cable attachment point on the pedal.
  1. Release cable from throttle pedal
  2. Remove cable

Refit

  1. Fit cable to vehicle
  2. Connect outer cable to bulkhead
  3. Connect cable to pedal
  4. Fit cable to abutment bracket
  5. Connect throttle cable to cam and adjust throttle cable, see Adjustments

R.H.D. vehicles only

  1. Position wiper motor to bulkhead
  2. Fit and tighten 4 screws securing wiper motor to 9 Nm.
