Stepper motor

injector housing union adapters and tighten finger tight.

9. Tighten fuel pipe unions to 24 Nm, DO NOT use backing spanner.
10. Connect multiplug to injector.
11. Refit air cleaner assembly.
12. Connect battery earth lead.

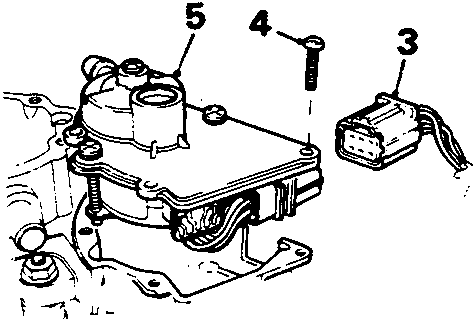

STEPPER MOTOR

Service Repair No. 18.30.05

Remove

1. Remove air cleaner assembly.
2. Remove injector housing.

3. Disconnect multiplug from stepper motor.
4. Remove 4 screws securing stepper motor housing to throttle body.
5. Remove stepper motor and housing from throttle body.

Refit

1. Clean housing mating faces.
2. Fit multiplug to throttle body.
3. Fit motor and housing to throttle body.
4. Fit and tighten screws to retain housing.
5. Reconnect stepper motor multiplug to harness.
6. Fit injector housing.
7. Fit air cleaner assembly.

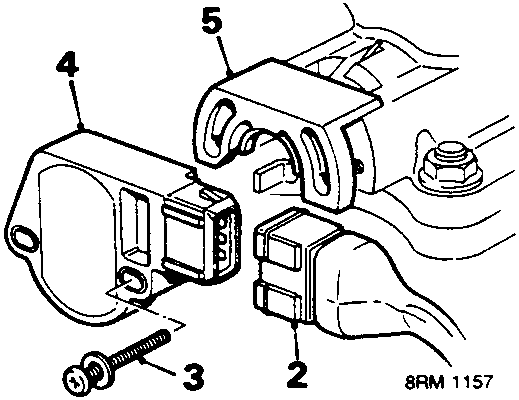

THROTTLE POTENTIOMETER

Service Repair No. 18.30.17

Remove

1. Disconnect battery earth lead.

2. Disconnect throttle potentiometer multiplug.
3. Remove 2 screws securing throttle potentiometer.
4. Remove throttle potentiometer from throttle body.
5. Remove spacer from throttle body.

Refit

1. Clean spacer and mating faces and fit spacer to throttle body.
2. Fit and align throttle potentiometer to throttle body, fit and tighten screws to 2 Nm.
3. Rotate throttle cam, check potentiometer lever action, ensure lever is inside throttle lever.
4. Connect throttle potentiometer multiplug.
5. Connect battery earth lead.
