Replace air intake pipe (Turbo-Charging)

Make

Vauxhall

Model

Astra H

Section

Turbo-Charging › Repair Instructions › Replace air intake pipe

Engine and Engine AggregatesReplace air intake pipe

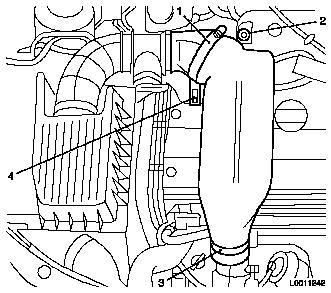

Replace air intake pipe   Remove 1.   Unscrew bolt (2) 2.   Remove engine vent hose from cylinder head cover •   Release clamp (4) 3.   Detach air intake pipe from air intake hose •   Release clamp (1) – Release clamp 4.   Detach air intake pipe from turbocharger •   Release clamp (3) Note:   Seal air intake pipe at turbocharger 5.   Remove air intake pipe   Install 6.   Remove seal from turbocharger air intake pipe 7.   Attach engine vent hose to cylinder head cover •   Fasten clamp 8.   Attach air intake pipe to turbocharger •   Fasten clamp 9.   Attach air intake pipe to air intake hose •   Fasten clamp 10.   Screw in bolt
